HZS40 Concrete Batching Plant

Introducción

HZS40 Concrete batching plant is designed by HAMAC group, which adopts the advantages of various different concrete mixers and advanced technology. The complete plant includes aggregate batcher, aggregate transporting system, cement storage and transporting system, water and additive supplying system, weighting system, mixing system, electrical control system and pneumatic system etc. It is a fully automatic controlled concrete batching plant. Its structure is reasonable, performance is well and reliable, operated easily, weighing accurate. It is suitable for the various projects such as road, bridge, port, airport and dam etc.
inquiry! Leave a Message!

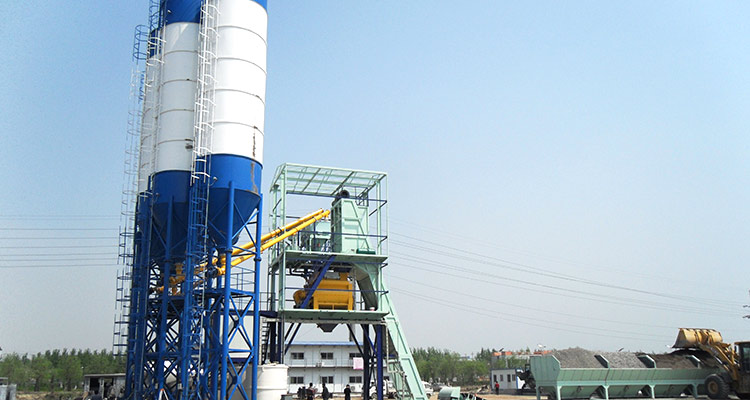

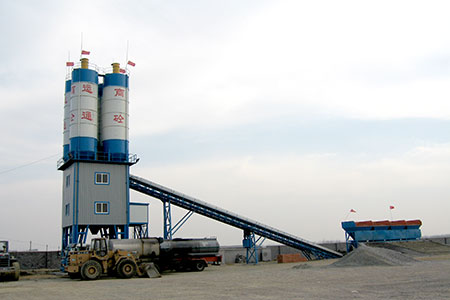

Clients' Working Site

HZS40 Concrete Batching Plant

Advantage

1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS750 twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.

Specification

Model HZS40
Theoretic productive 40m3/h
Concrete mixer JS750
Maximum aggregate size 80mm
volume of aggregate bin 3×7m3
aggregate transporting way Conveyer Belt
aggregate weighing 2200Kg ±2%
Cement(and fly ash) weighing 450Kg ±1%
Water weighing 200Kg ±1%
additive weighing 30Kg ±1%
total power 80Kw
total weight 28t
Overall dimension (working condition: LXWXH) 19.8m×8.2m×8.5m
discharging height 3.8 m
silo (optional) As client request, the quantity and volume is optional.
screw conveyor  (optional) One φ219 screw conveyor for each silo
