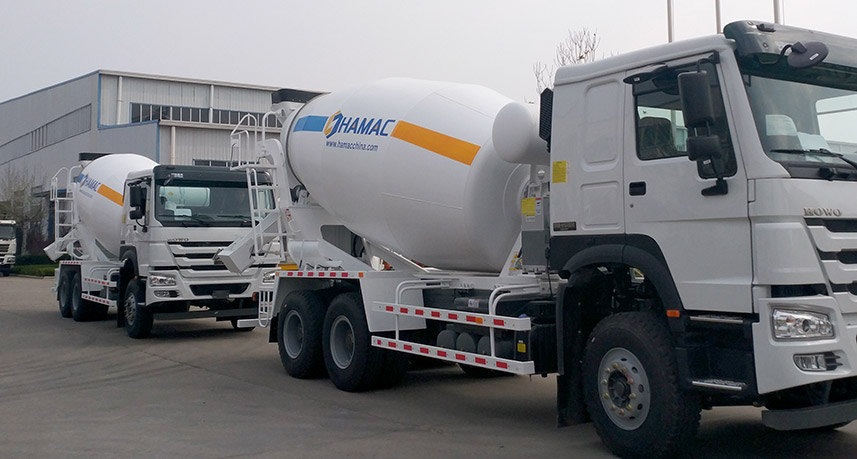

Concrete Mixer Truck
INTRODUCTION
Concrete Mixer Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
Concrete Mixer Truck has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.
Concrete truck mixer is available in a wide range of options to meet your different demand. The concrete mixer truck is equipped with ultra-high strength integrated auxiliary frame, ensuring its stability. 3-section folded blade, innovative ball-crown structure and rear taper flushing device setting lower the residue rate at discharge port. You can count on the quality and reliability of our concrete mixers.
Hot Sale in stock: HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck - 6m3 Concrete Mixing Truck - 8m3 Concrete Mixing Truck - 10m3 Concrete Mixing Truck - HMC1.5 Self-loading Concrete Mixer - HMC4.0 Self-loading Concrete Mixer Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223
Detailed Photos
Performance
1. Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.
2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer
Manufacturing Process
Specification
| Capacity | 4m³ | 6m³ | 4m³ | 6m³ | |
| Chassis brand | FAW/FOTON/DFAC | Dimension (mm） | 6880*2412*3500 | ||
| Wheel base (mm) | 3650 | 4100 | Feeding Speed (m³/min) | ⪖1.5 | ⪖2 |
| Track Front (mm) | 1725 | Discharging speed (m³/min) | ⪖1 | ⪖1.5 | |
| Track Rear (mm) | 1670 | Drum rotation speed (r/min） | 0-16 | ||
| Tire Type | 9.00-20,9.00 R20 | Rest Rate | ⪕0.1% | ||
| Engine Emission standard | B17691-2005 National IV, GB3847-2005 | ||||
| Engine brand | YUCHAI | ||||
| Power | 130HP | ||||
| Gearbox | Italy Interpump | ||||
| Motor | Italy Interpump | ||||
| Hydraulic Pump | Italy Interpump | ||||
| Capacity | 8m3 |
| Chassis brand | FAW/FOTON/DFAC |
| Chassis Demission（mm） | 8300×2470×2850 |
| Wheelbase（mm） | 3850+1300,4150+1300 |
| Number of axles | 3 |
| Track front（mm） | 1980 |
| Track rear（mm） | 1860/1860 |
| Front overhang（mm） | 1250/2300 |
| Rear overhang （mm） | 1250/2850 |
| Approach angle/Departure angle | 34/15,34/13 |
| Tyre Number | 10 |
| Tyre Size | 10.00-20,11.00-20 |
| Plate Spring Number | 9 10 |
| Fuel | Diesel |
| Engine emission standard | National IV |
| Engine brand | YUCHAI |
| Power | 215kw/290HP |
| Engine Rated speed（r/min） | 2800 |
| Engine Idle speed（r/min） | 700~750 |
| Clutch | Biplate Dried constant joint |
| Transmissions type | Shaft drive transission |
| Drive mode | Rear Wheel Drive |
| Turning form | Hydraulic power steering |
| Service brake | Air-brake |
| Parking braking | Air brake braking |
| Max. speed(km/h) | 85 |
| Concrete mixing truck Demission（mm） | 8700,9550×2500×3760,3880 |
| Mixing volume（m³） | 8 |
| Feeding rate（m³/min） | ≥2 |
| Discharging rate（m³/min） | ≥1.5 |
| Drum rotation speed（r/min） | 3~9 |
| Discharging remnant rate | ≤0.1% |
| Water supply mode | Air pressure supply |
| water tank volume（L） | 200 |
| Radiator | 24v air-cooled |
| Reduction box | Fuxin |
| Motor | Interpump |
| Hydraulic pump | Interpump |
| Model Name | Technical data | ||||
| Unit | 9 m3 | 10m3 | |||
| Vehicle data | Model | ZZ1257N4048W/ZZ1256N4046C1 | ZZ1257N4048W/ZZ1256N4046C1 | ||
| Total Length | mm | 9800 | 9800 | ||
| Total Width | mm | 2490/2490 | 2490/2490 | ||
| Total Height | mm | 3830 | 3830 | ||
| Chassis Model | HOWO ZZ1257N4048W/ ZZ1256N4046C1 | HOWO ZZ1257N4048W/ ZZ1256N4046C1 | |||
| Overall Weight | kg | 25000 | 25000 | ||
| Curb Weight | kg | 15650 | 15650 | ||
| Wheel Base | mm | 4025+1350 | 4025+1350 | ||
| Front Tread | mm | 2022 | 2022 | ||
| Rear Tread | mm | 1830 | 1830 | ||
| Tyre Model | 11.00-20,12.00-20 | 11.00-20,12.00-20 | |||
| Front Overhang | mm | 1500 | 1500 | ||
| Rear Overhang | mm | 2980 | 2980 | ||
|
Min. Turning Radius |
m | 10.1 | 10.1 | ||
| Max. Traveling Speed | Km/h | 86/97 | 86/97 | ||
| Steering Device(GERMANY ) | ZF8098 | ZF8098 | |||
| Oil Consumption per 100 km(under limited conditions) | L | 34 | 34 | ||
| Engine | Engine Model | WD615.95(E) | WD615.95(E) | ||
| Cylinder Number and Arrangement | Linear 6-cylinder | Linear 6-cylinder | |||
| Engine max. output power | kw | 247/2200 | 247/2200 | ||
| Max. Engine Torque | N.M | 1420/1100 | 1420/1100 | ||
| Working Device | Mixing Drum Volume | m3 | 17.05 | 17.05 | |
| Mixing Cubage | m3 | 10 | 10 | ||
| Mixing Drum Slope Angle | % | 12 | 12 | ||
| Mixing Drum Rotating Speed | r/min | 0-14 | 0-14 | ||
| Feeding Speed | M3/min | ≥3.5 | ≥3.5 | ||
| Discharging Speed | m3/min | ≥1.5 | ≥1.5 | ||
| Slump | mm | 100~230 | 100~230 | ||
| Surplus Rate | % | <0.5 | <0.5 | ||
| Water Tank Capacity | L | 260 | 260 | ||
