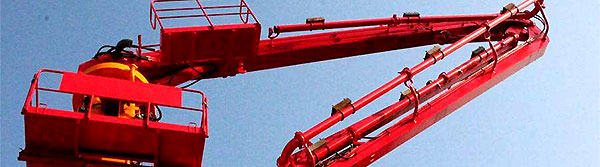

Floor climbing Hydraulic Concrete Placing Boom
INTRODUCTION
Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity.
Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - DHBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom - HBT80 Electric concrete pump - Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

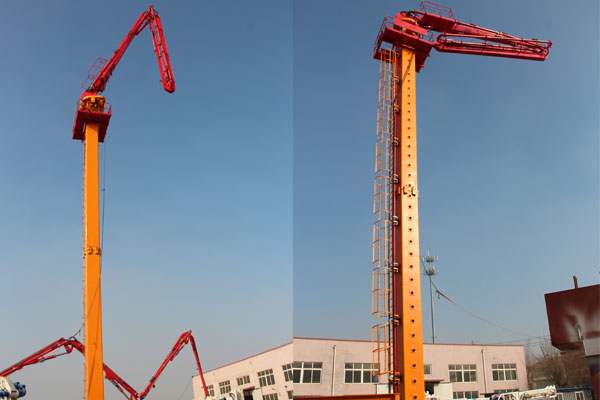

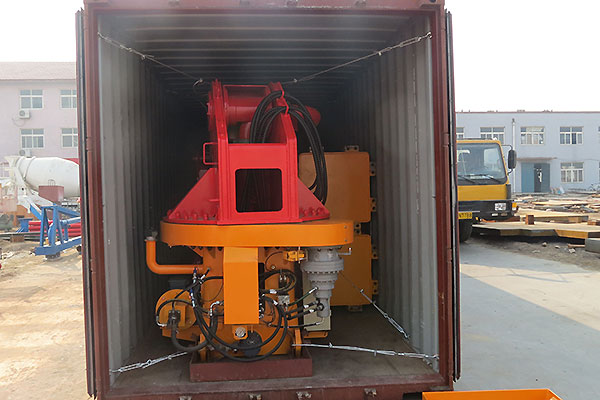

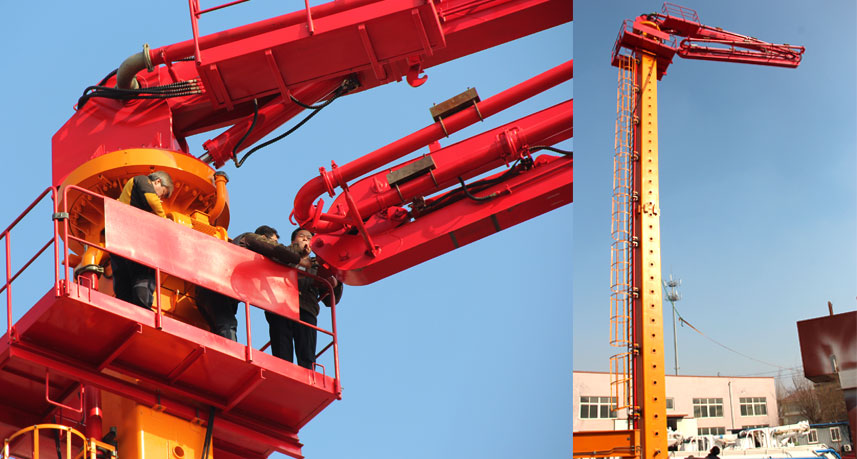

Detailed Photos
Performance
1. Horizontal placing radius 28-32 meters (exclude 3m hose), full hydraulic drive;
2. The concrete placing boom can be anchored to the floor with initially prepared holes when working, and it can be lifted by its climbing system. One lifting can meet the need for two floors concrete placement; If the floor area is too large, several tower bodies can be installed and move the boom assembly onto relevant tower body to meet the needs of certain area concrete placement and save cost;
3. Compact structure, easy operation, reliable safety, economical and practical, it can be installed on either floor or elevator shaft.

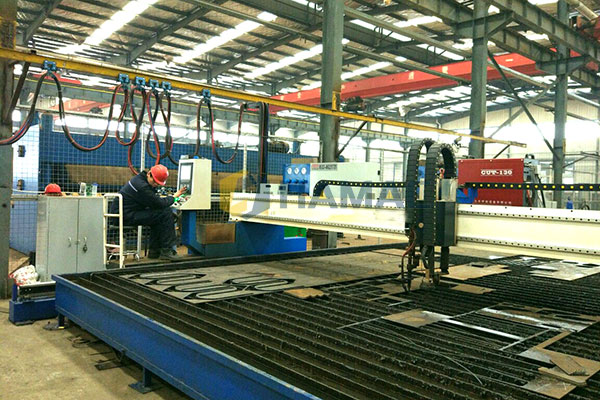

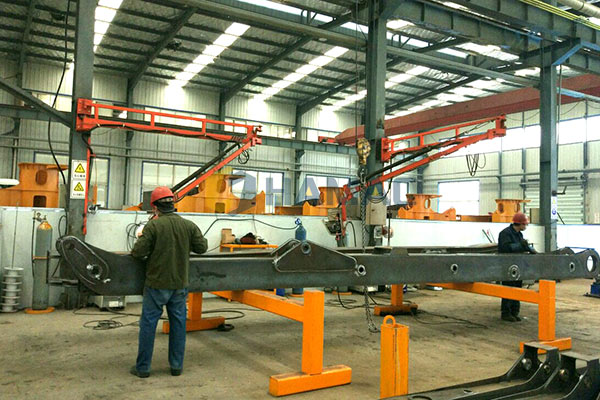

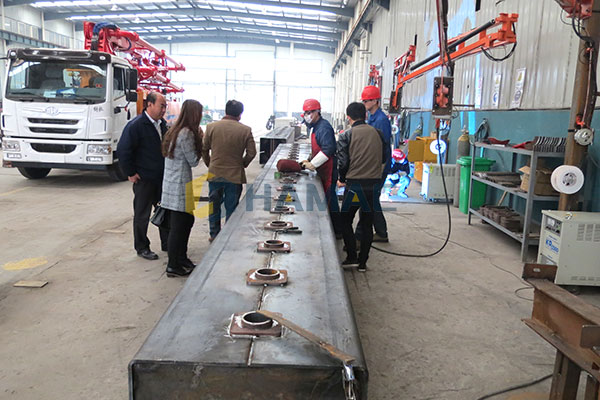

Manufacturing Process
Specification
| Model | HGY24 | HGY28 | HGY32 | |||
|
Delivery pipe dimension (outside diameter×thickness) (mm) |
φ133×4.5 | φ133×4.5 | φ133×4.5 | |||
|
Delivery hose dimension (inside diameter×length) (mm) |
φ125×3000 | φ125×3000 | φ125×3000 | |||
| Radius of placing boom(m) | 24 | 27.7 | 31.7 | |||
| Stationary height(to the join between the end of the boom and swivel table(m) | 22.7 | 22.7 | 22.7 | |||
|
Three hydraulic foldable arms |
1st section | 10.5m | 10.5m | 14.5 | ||
| 2nd section | 9.2m | 9.2m | 9.2m | |||
| 3rd section | 8.0m | 8.0m | 8.0m | |||
| Boom articulation | 1st section | -4.2°～+82.5° | -4.2°～+82.5° | 0-82.5° | ||
| 2nd section | O°～180° | O°～180° | O°～180° | |||
| 3rd section | O°～180° | O°～180° | O°～180° | |||
| Slewing range(°) | 360 | 360 | ||||
| Power of motor(kw) | 11 | 11 | 15 | |||
| Pressure of hydraulic system (MPa) | 26 | 30 | 30 | |||
| Type of hydraulic oil | AW68 | AW68 | L-HM 68 | |||
| Climbing | 3.0 | |||||
| The min．Interval of climbing | Placing concrete | 6.0 | ||||
| Frame (m) | Resting | |||||
| Mode of operation |
1． cable remote control 2． radio remote control |
|||||
| power | 380V/50Hz | |||||
| wind speed | Placing concrete | ≤60 km／h | ||||
| Climbing | ≤28 km／h | |||||
| working temperature | O～60℃ | |||||
