HBT25-L2 Concrete Mixer Pump
INTRODUCTION

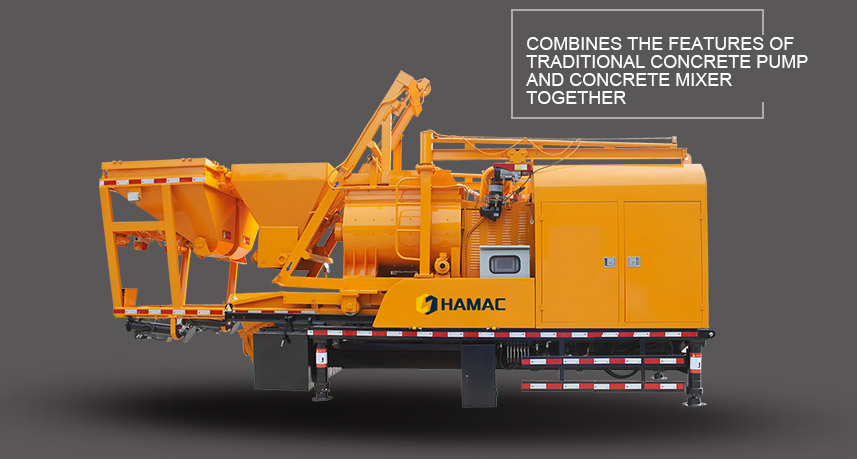

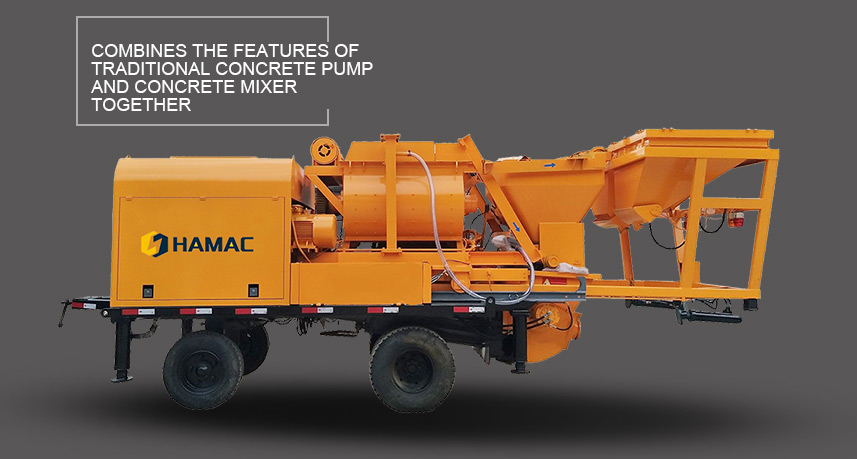

HBT25-L2 Electric Concrete Mixer Pump is a very useful machine which definitely combines the features of traditional concrete pump and concrete mixer together. It can reach the function of feeding, blending, mixing and pumping First the pump gets into the mixing system, after that it enters into the pumping system. And then it is pumped to the construction spots with the help of conveying pipes. Thanks to its fully automated construction operating system, the whole process is finished in a very short time. As one of the most popular concrete conveying equipment, more and more customers become interested in it.
Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

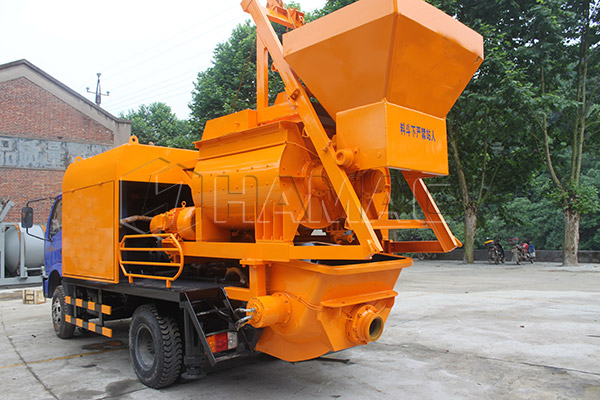

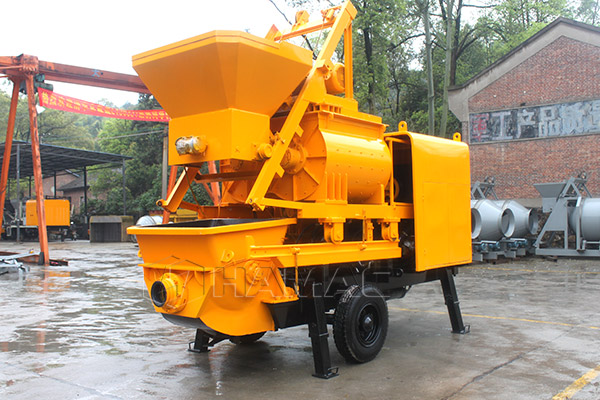

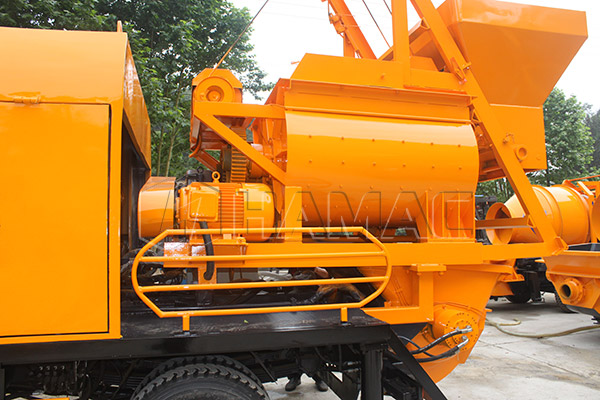

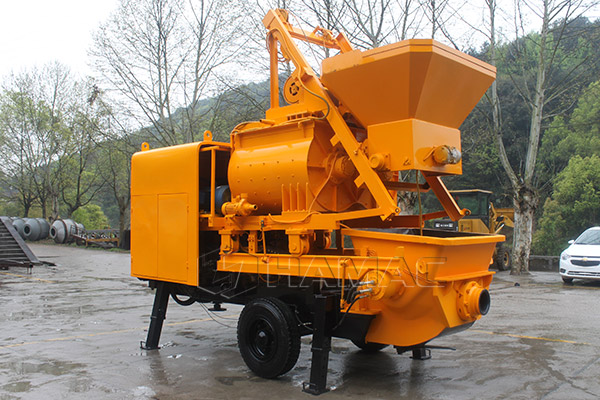

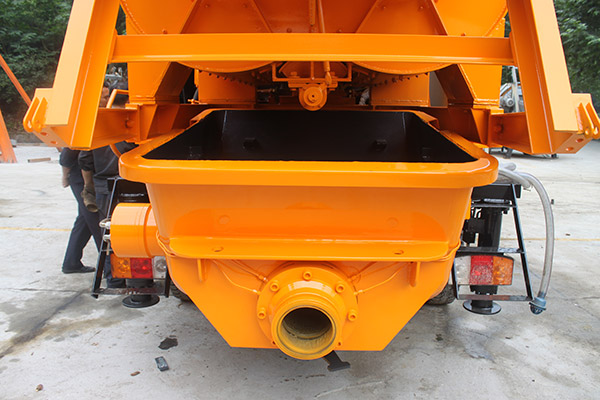

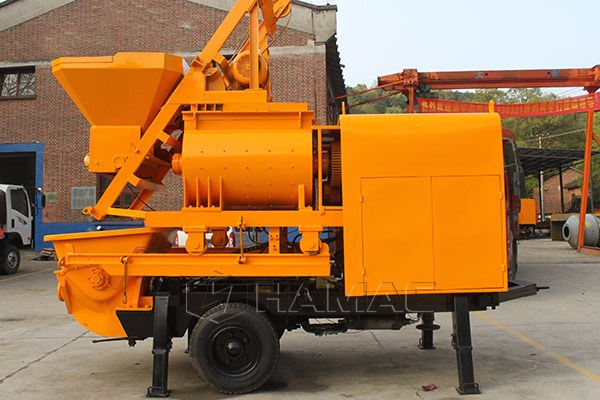

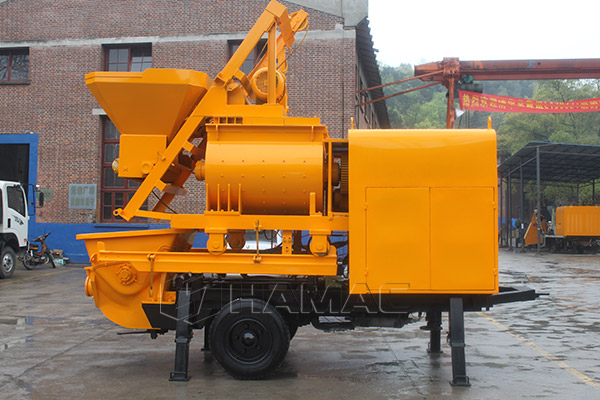

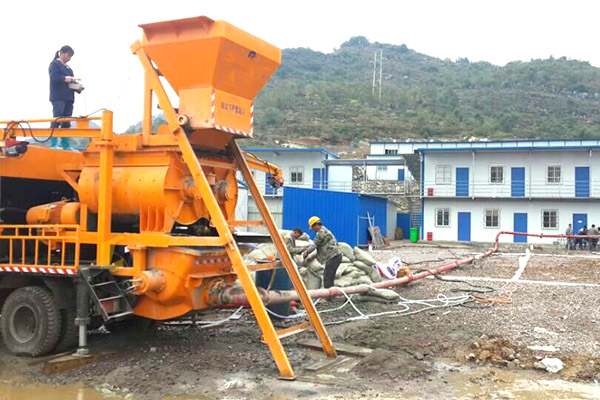

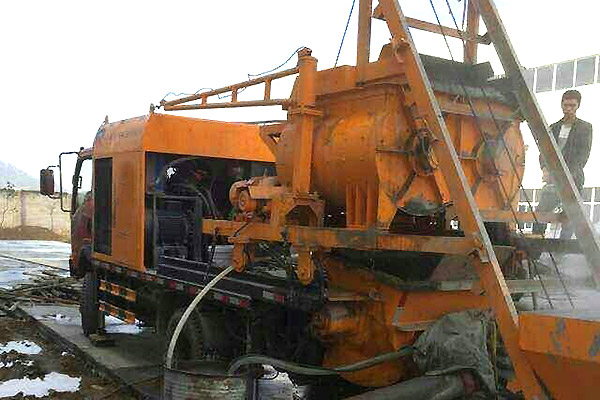

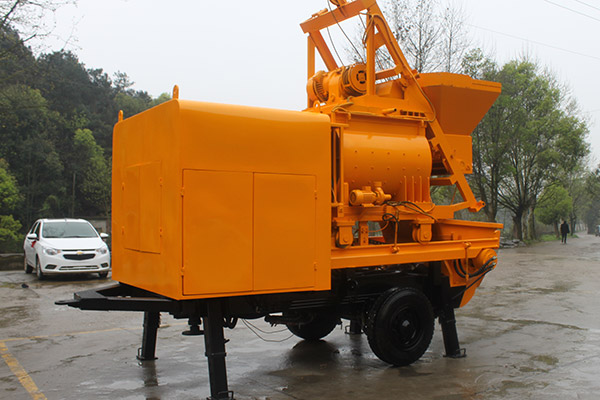

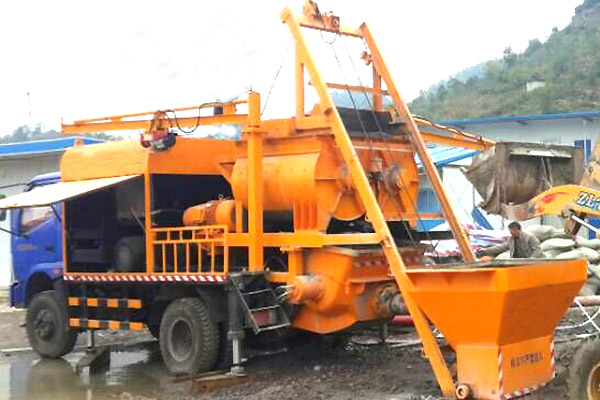

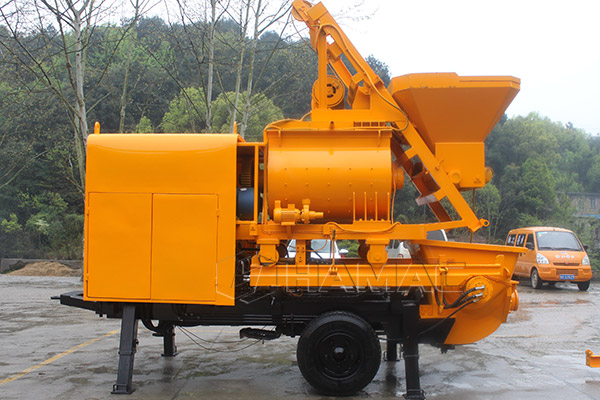

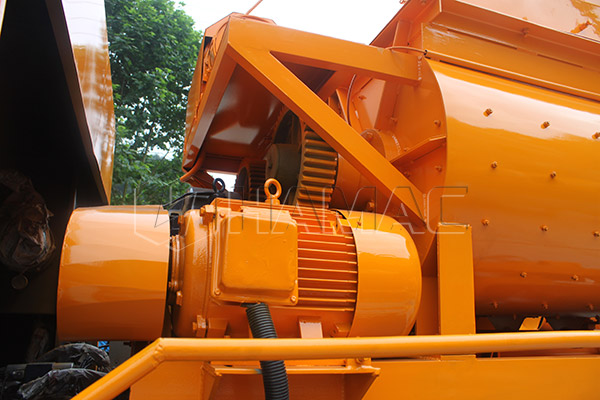

Detailed Photos
Performance
1. Equipped with diesel generator, Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. Equipped with aggregate batching machine, 20 recipes of concrete can be produced;
4. Forced type concrete mixer, compared with drum type concrete mixer, concrete quality is better;
5.PLC controlled, work stable, working life longer.
Manufacturing Process
Specification
| Model | HBT25-L2 Concrete Mixer Pump | ||
| Product name | Trailer batch pump | ||
| Pumping system | |||
| ITEM | SPEC | ITEM | SPEC |
| Generator | 100KW | Main motor | 37KW |
| Main pump | KAWASAKI K3V112 | Aggregate size |
Pebble: 40mm Crushed stone: 30mm |
|
Deliver cylinder Diameter*stroke |
Φ200*1000 |
Main oil cylinder Rod*stroke |
Φ100*φ70*1000mm |
| Distribution valve | S valve | Outlet diameter | Φ200 |
| Hydraulic oil tank | 300L | Delivery pipe | Φ125 |
| Slumps | 12-23cm | Max.theo. Pumping output | 40m3/h |
| Mixing system | |||
| Mixer | JS500 | Mix motor | 18.5KW |
| Feeing hopper x filling height | 800L x 1200mm | Hoist motor | 5.5KW |
|
Discharging capacity |
500L | Water pump | 0.75KW |
| Max. Theoretical mixing output | 25m3/h | Vibrator | WAM 0.75kW*2 |
| Batching system | |||
| Hopper capacity | 1.8m3*2 | Compressor | 3 bar |
| Wireless control | Included | Sliding rail | Included |
| Overall Dimension | |||
| Operating size | 8900*2210*3100mm | Total weight | 8000KG |
| Transport size | 6900*2210*3100mm | Hydraulic leg |
6 PCS |
