Concrete Mixer with Pump

INTRODUCTION

According to the actual construction requirement in the rural districts, small and medium towns, and various construction projects, our company researched and developed this new versatile equipment “concrete mixer with pump” combined with concrete mixing system and concrete delivering system. It is more convenient for the customers. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

Hot Sale in stock: HMC3.5 self-loading mixer - Diesel Concrete Mixer Pump - Electric Concrete Mixer Pump - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!

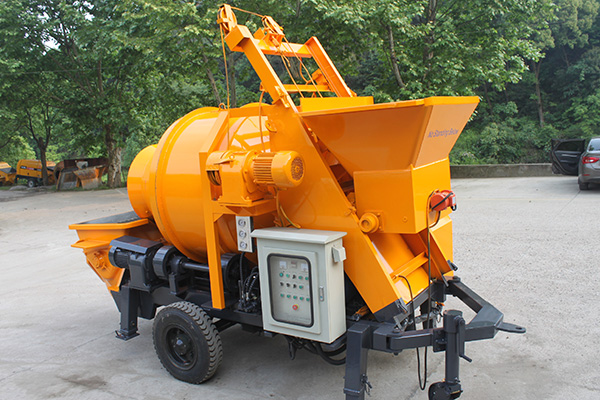

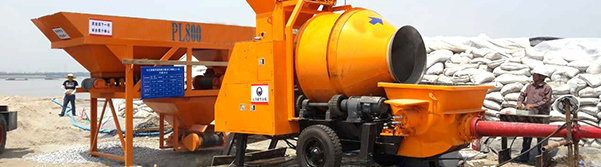

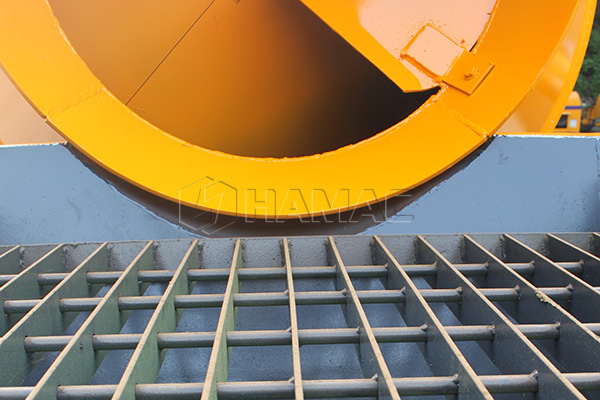

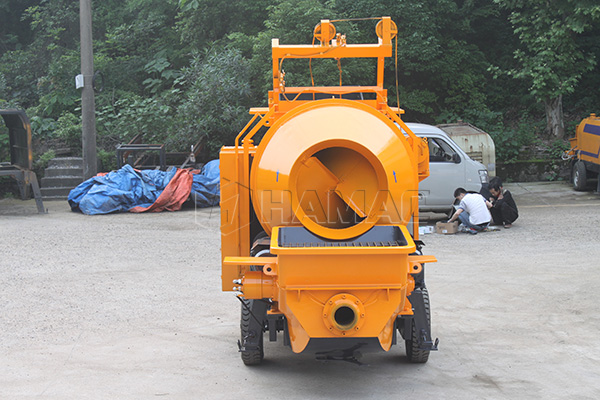

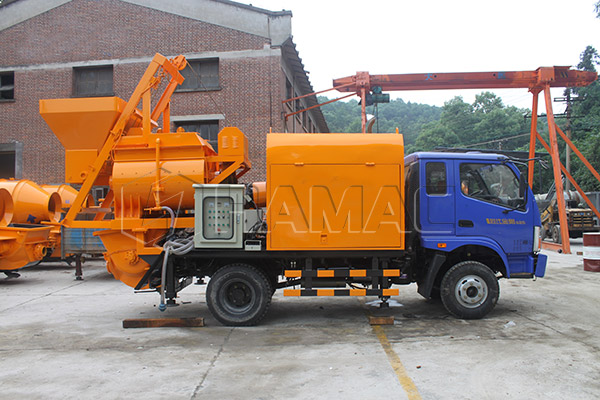

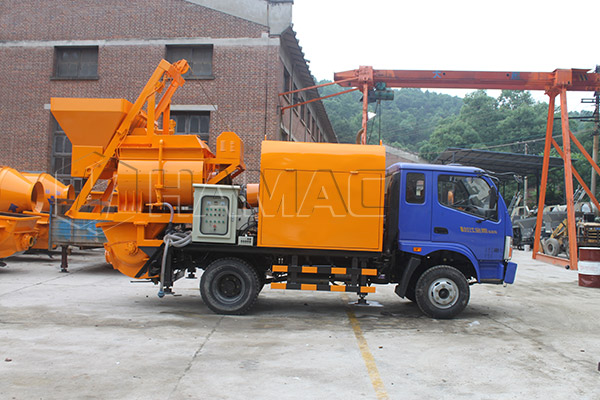

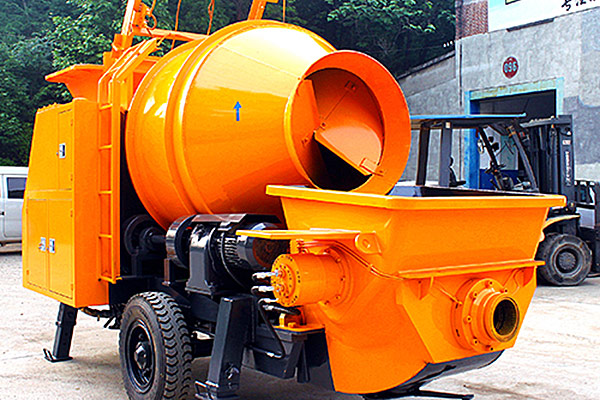

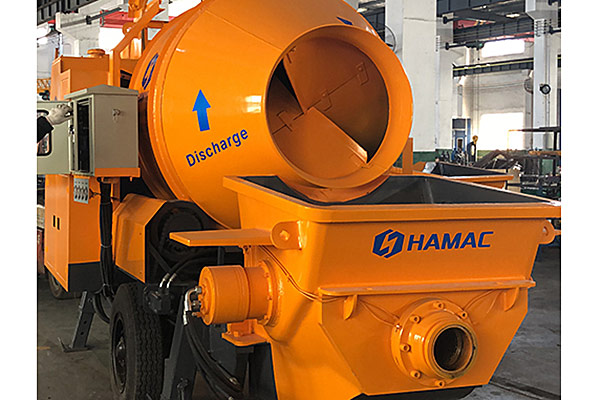

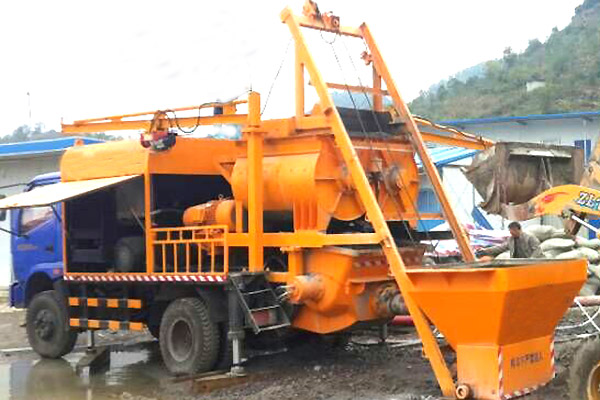

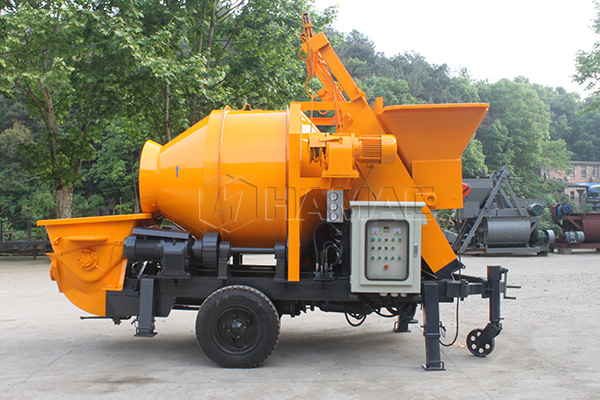

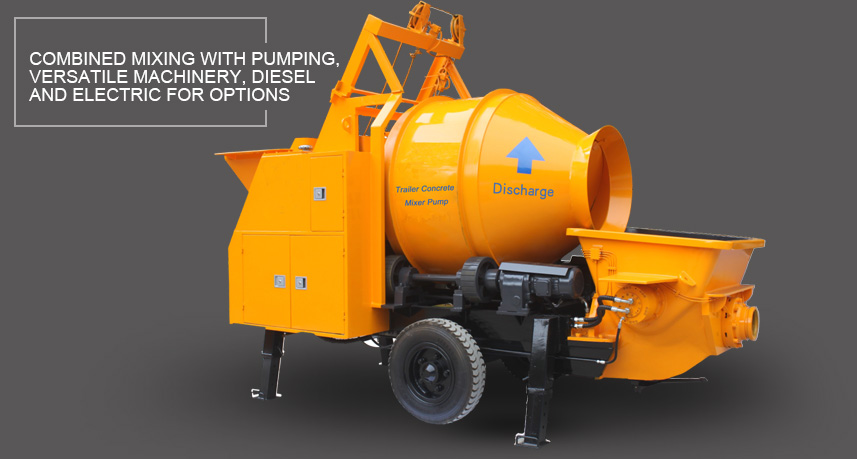

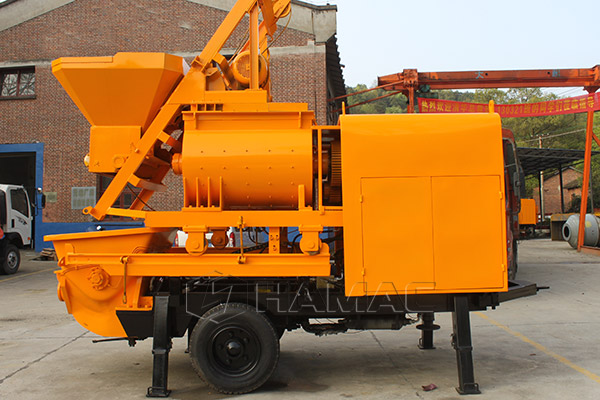

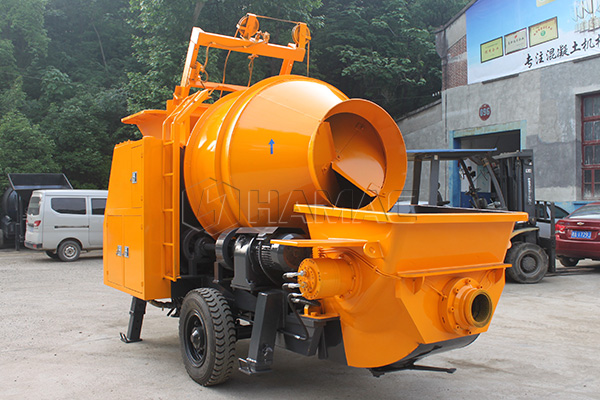

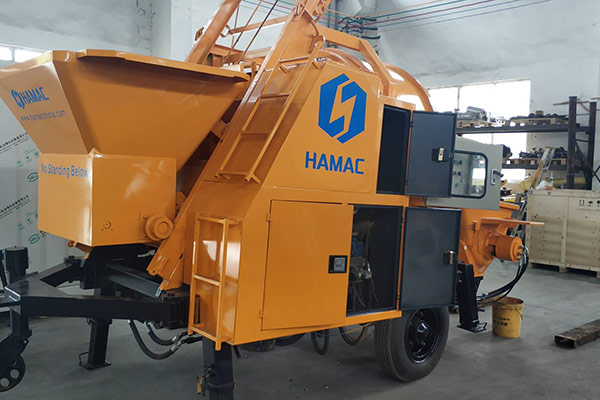

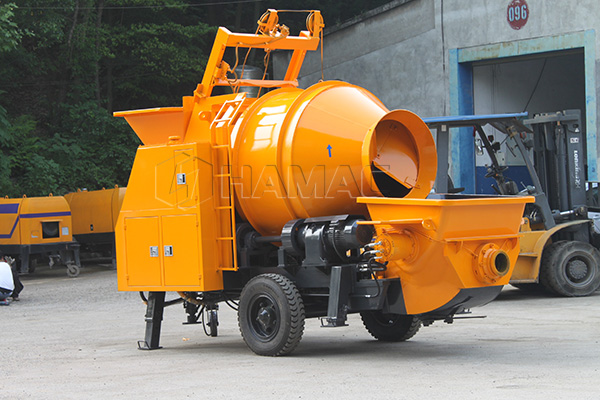

Detailed Photos

FEEDBACK

Performance

1. Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. One worker to operate the mixing and pumping, save your labor cost;

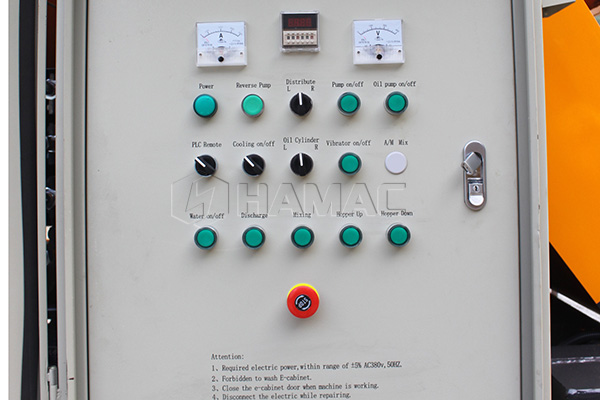

4. PLC controlled, work stable, working life longer;
5. Loading, mixing, discharging and pumping, full hydraulic, full automatic;
6. Manual lubrication, separate water-cooled diesel engine;
7. Two usages of dragging support, could be used as charging platform;
8. Versatile, concrete mixer and concrete pump could work separately.

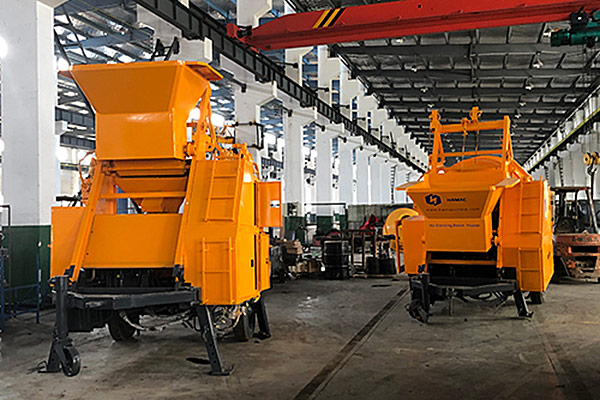

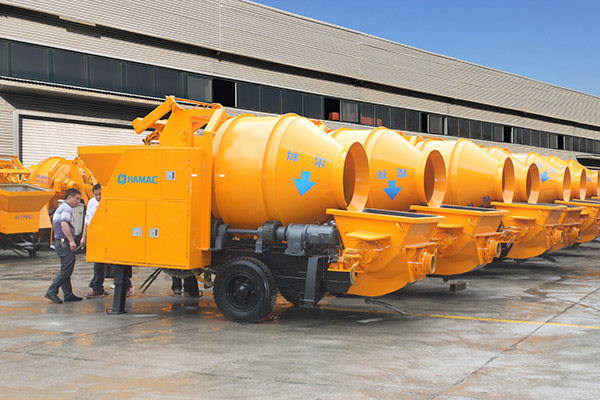

Manufacturing Process

Specification

Parts Name/Parameters		Parts Specification
Models		HBT15	DHBT15	HBT15-L1
Power	Power supply model	Local electricity 3P	Diesel engine	Local electricity 3P
	Electric Component	Siemens/Schneider/Omron
Mixing System	Mixer	JZM450 drum mixer, 750L charging hopper, 450L concrete output per batch		JS500 twin shafts concrete mixer, 800L charging hopper, 500L concrete output per batch
	Mixing Motor	5.5kW*2	Hydraulic	18.5kW
	Hoist Motor	5.5kW	Hydraulic	5.5kW
	Submersible Pump	0.75kW	Hydraulic	0.75kW
	Max. Theoretical Mixing Output	18-22m³/h		25m³/h
Pumping System	Main Motor	37KW	52kW, Weichai diesel engine	37KW
	Motor Rated Speed	1480 RPM	1800 RPM	1480 RPM
	Mian Hydraulic Oil Pump	KAWASAKI K3V112
	Double Gear Pump	25&16
	Valves	overflow and directional valves, OM, Italy brand
	Main Oil Cylinder	Φ100Φ701000mm
	Delivery Cylinder	Φ200*1000mm
	S Valve	Φ200mm
	Cutting Ring	Φ200mm
	Glass Wear Plate	Φ200mm
	Max. Theoretical Pumping Output	40m³/h
	Outlet Pressure	8Mpa
	Hydraulic System Type	Open circuit
	Motor Rated Voltage	Customized	Diesel engine	Customized
	Max. Aggregate Size	Pebble:40mm Aggregate:30mm
	Delivery height and horizontal distance	70m/300m
	Hydraulic Oil Tank Volume	200L
	Concrete Outlet Diameter	Φ180mm
	Hopper Capacity × Filling Height	6001400 (Lmm)
	Machine Size(LxWxH)	510022002450 mm
	Total Weight	5300kgs	5600kgs	7000kgs
	Tyre Size	700R16
	Towing Speed	Max. 8km/h
