Remote Controlled Skid Steer Loader

Remote Controlled Skid Steer Loader

INTRODUCTION

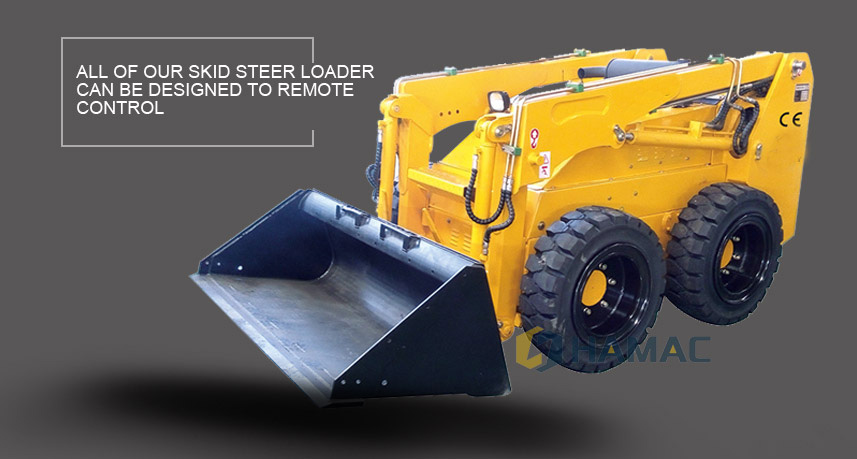

With Remote Control operation, you control your loader without having to be in the cab. Completely portable, and designed for the worst working environments*, the Radio Remote Control system is installed or removed in minutes for easy use with multiple machines. The system is available for HAMAC skid-steer and compact track loaders equipped with Selectable Joystick Controls. It’s also compatible with All-Wheel Steer loaders.This is a smart solution for hot, dusty environments or on jobs where you’d rather be outside of the machine. For example, two people are sometimes required for operating attachments such as planers and wheel saws. One person guides the placement of the attachment using hand signals, while the other operates the loader. With the Radio Remote Control System, this same job can be done with one person, and the operator can operate the loader from a distance, free from dust and noise.The Radio Remote Control System is valuable in approved applications including concrete, demolition, highway and asphalt planing, fire breaks, stump removal, poultry barns, shipping yards, nuclear power plants, foundries, mining, chemical plants and municipalities.

inquiry! Leave a Message!

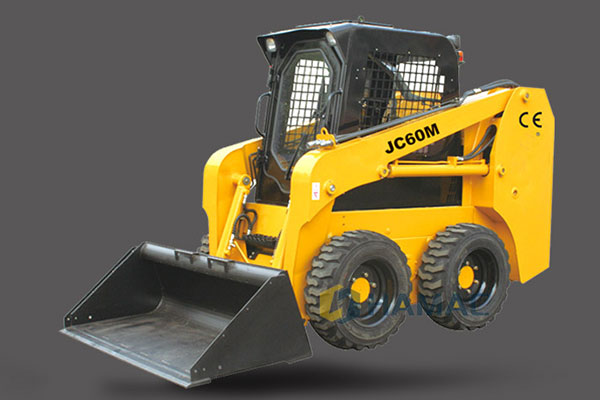

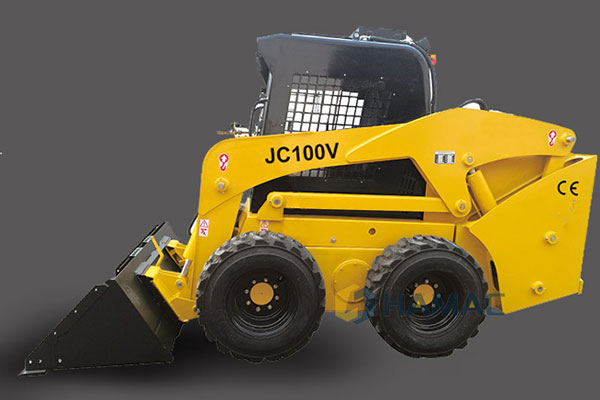

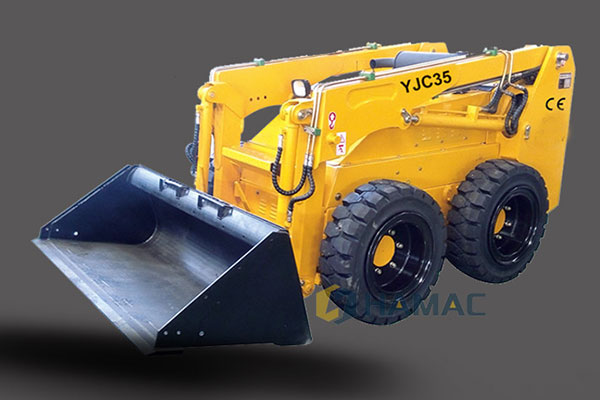

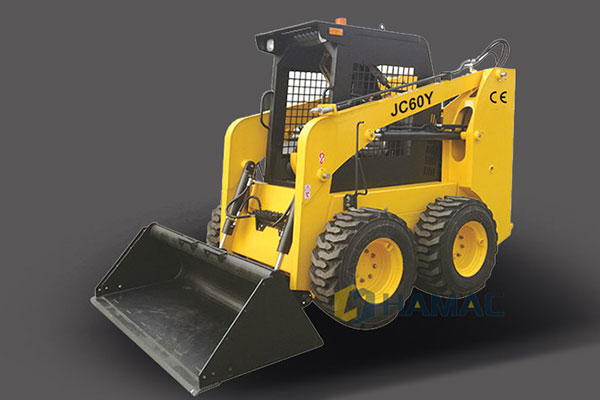

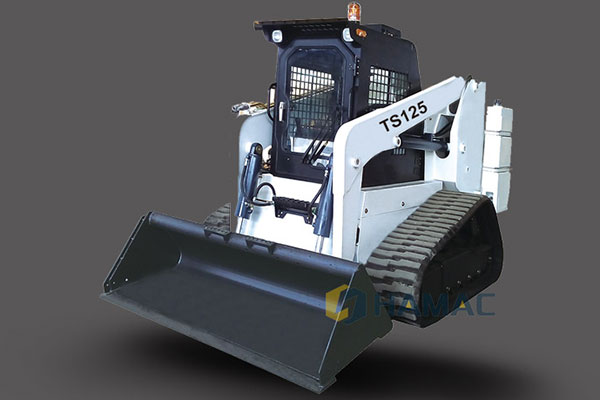

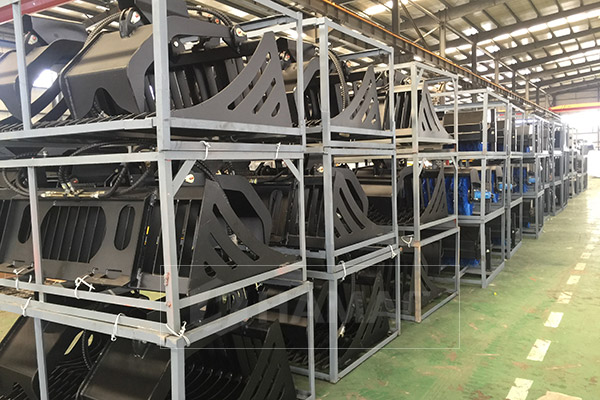

Detailed Photos

Specification

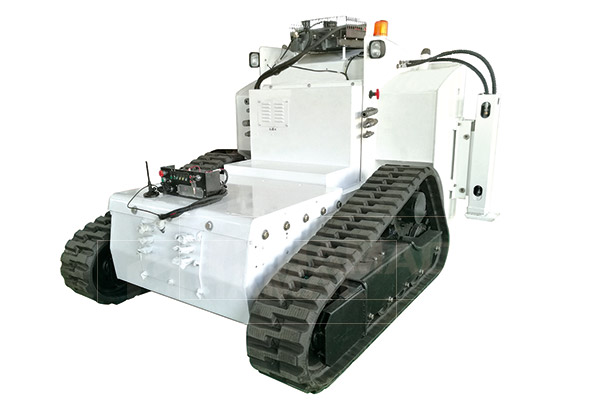

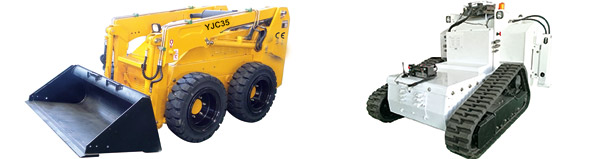

Model YJC35 YTS100
Operating Load (kg) 500 1200
Max. Speed (km/h) 10 12/18
Hydraulic flow (L/min) 60 88
Tire Model 8.5-15 320*84
Rated Power (kW) 29.5 74
Fuel tank Volume (L) 60 90
Self Weight (kg) 2300 4500
Bucket Volume (m³) 0.3 0.55

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Structure Data:

Main data/ Model YJC35 YTS100
Overall operating height (mm) 2825 4070
Height to bucket hinge pin (mm) 2200 3150
height to top of cab (mm) 1355 2160
Height to bottom of level bucket(mm) 2033 2983
Overall length without bucket(mm) 2300 3000
overall length with bucket(mm) 2950 3700
Dumping angle at maximum height(° ) 40 40
Dumping height(mm) 1525 2450
Dumping reach(mm) 790 700
Rollback o bucket on ground(° ) 30 30
Rollback of bucket at full height(° ) 104 104
Wheelbase(mm) 897 1500
Ground clearance(mm) 140 200
Angle of departure(° ) 20 20
Front turning radius without bucket(mm) 1098 1365
Front tuning radius(mm) 1760 2200
Rear tuning radius(mm) 1296 1742
Rear axle to bumper (mm) 964 938
Tread width, centerline to centerline (mm) 1080 1654
Width (mm) 1350 1994
Bucket width (mm) 1400 2030
