JS series Concrete Mixer

JS series Concrete Mixer video

INTRODUCTION

JS series concrete mixer is a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple type concrete batching plant. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.

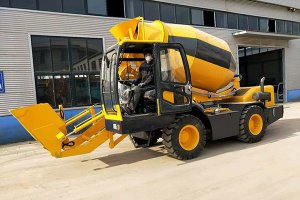

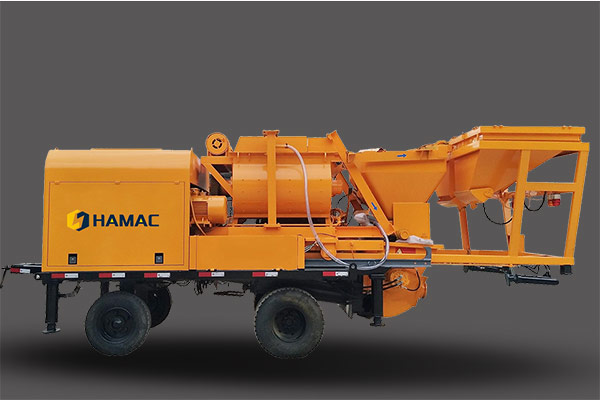

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump  - Get quote or inquiry!

inquiry! Leave a Message!

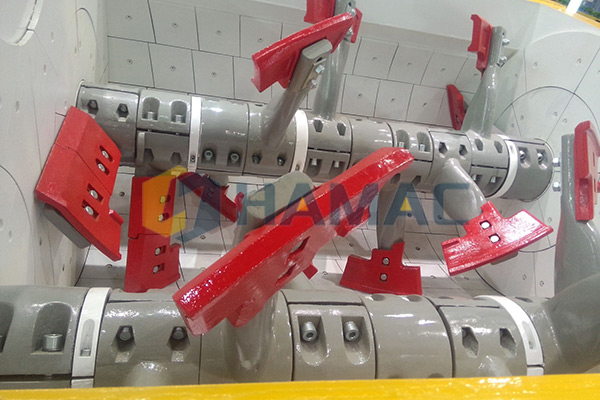

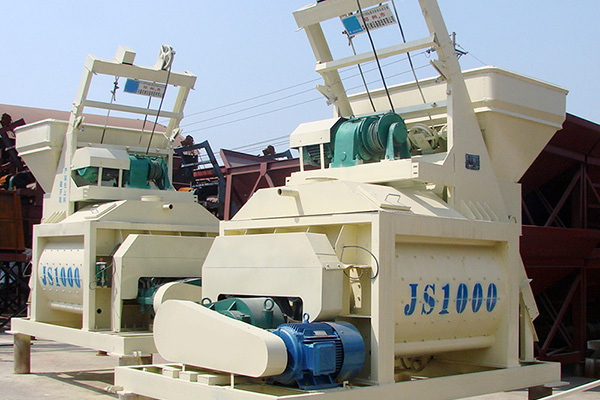

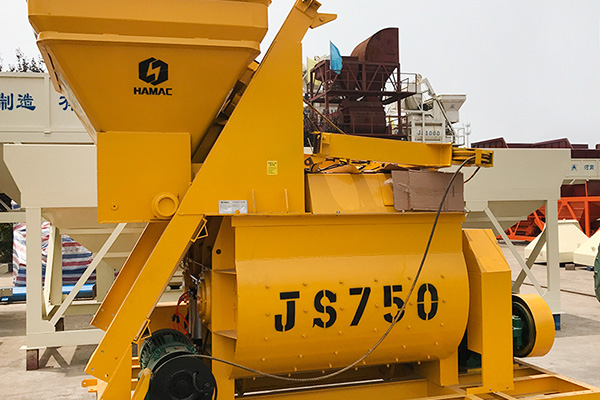

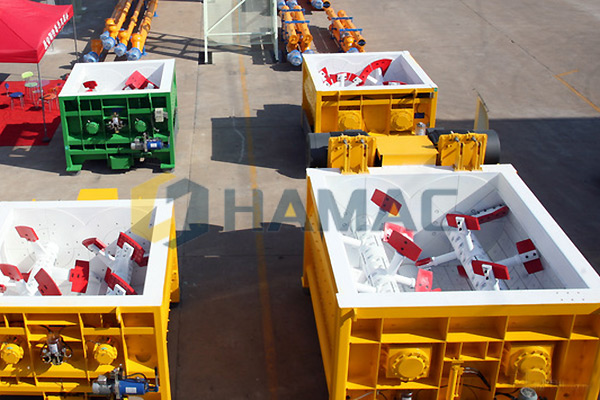

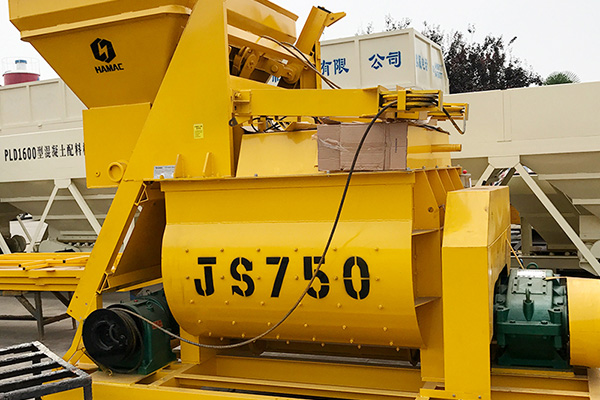

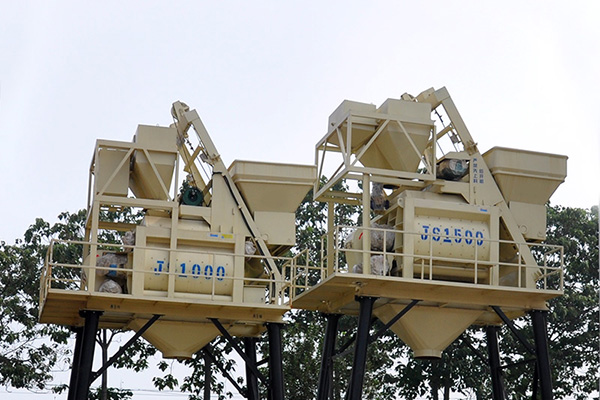

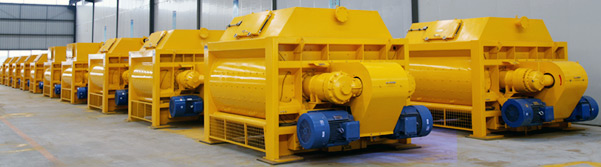

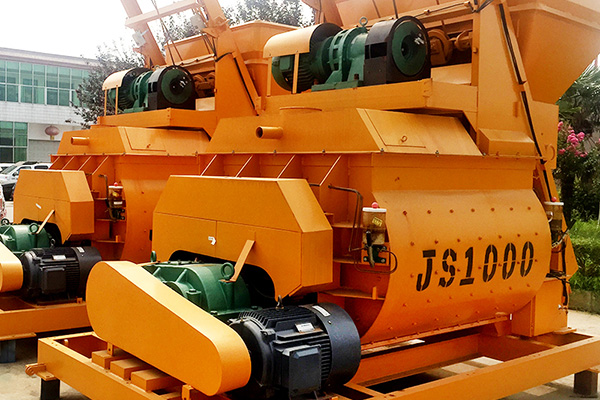

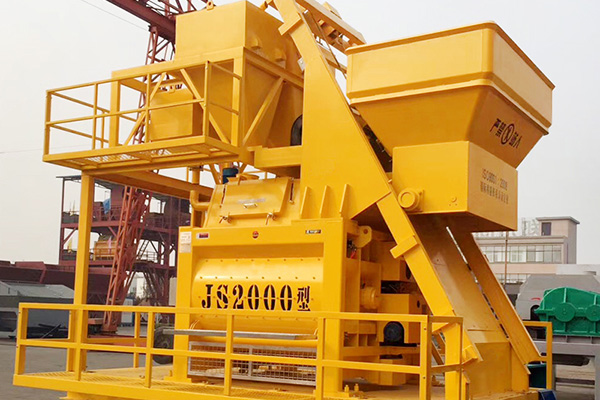

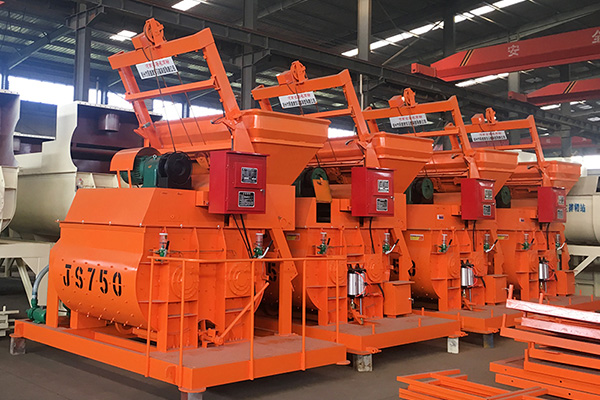

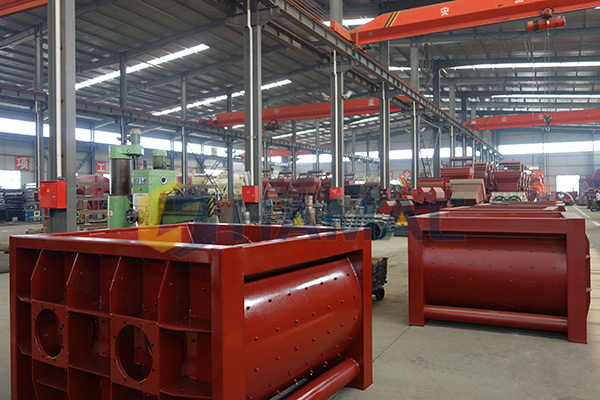

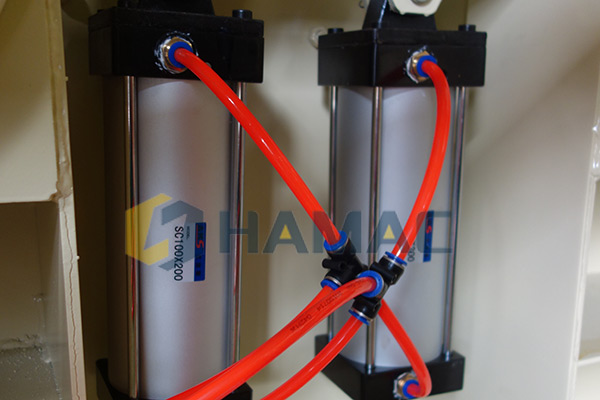

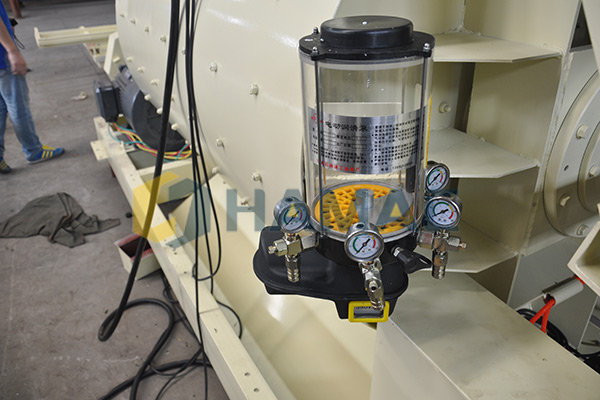

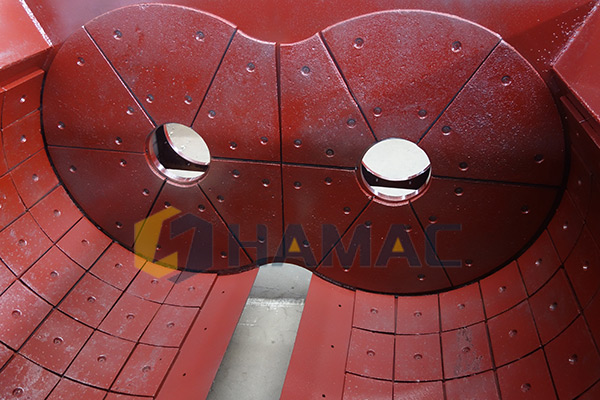

Detailed Photos

Specification

Model JS500 JS750 JS1000 JS1500 JS2000 JS3000 JS3500 JS4000
Discharging volume (L) 500L 750L 1000L 1500L 2000L 3000L 3500L 4000L
Feeding volume (L) 800L 1200L 1600L 2400L 3200L 4800L 5600L 6400L
Capacity ≥25m³/h ≥37.5m³/h ≥50m³/h ≥75m³/h ≥100m³/h ≥150m³/h ≥180m³/h ≥200m³/h
Maximum aggregate size (pebble/gravel)mm 40/50 40/60 60/80 80/100 80/100 80/120 80/120 80/120
Cycle time (S) 72 72 60 60 60 60 60 60
Total weight (kgs) 4000 5500 8700 11300 15000 11450 12000 19000
Discharge height (m) 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8
Mixing blade Rotary speed 35r/min 26r/min 29.6r/min 24.5r/min 24.5r/min 21r/min 21r/min 21r/min
Quantity 2×7 2×7 2×8 2×8 2×8 2x10 2x10 2x11 2x12
Mixing motor Model Y180M-4 Y200L-4 Y180M-4 Y225M-6 Y250M-6 Y280M-6 Y280M-6 Y315S-6
Power 18.5kw 30kw 2x18.5kw 2x30kw 2X37kw 2X55kw 2X55kw 2X55kw
Hoist motor Model YEZ1325-4-B5 YEZ132M-4-B5 YEZ160L-4 YEZ180L-4 YEJ180L-4 Y25M -4 Y25M -4 Y25M -4
Power 5.5KW 7.5KW 15KW 18.5KW 22KW 2 × 55 kw 2 ×55 kw 2 × 75 kw
Pump motor Power 1.1KW 1.1KW 3KW 3KW 4KW 5KW 5KW 6KW

Any change of technical data shall not be advised additionally.
