SICOMA Double Shaft Concrete Mixer
INTRODUCTION
SICOMA twin shaft concrete mixer (concrete agitator) is a type of concrete mixer, which mainly consists of tank system, mixing system, driving system, seal lubricating system, discharge system and electrical system. The twin horizontal shafts rotate in high speed, produce convection, thus the mixing process of aggregate, water, cement and additive is finished. SICOMA twin shaft concrete mixer is mainly used to mix powder and granular inertia materials. As one type of 2017 hot sale SICOMA twin shaft concrete mixer, SICOMA twin shaft concrete mixer is widely used for mixing commercial concrete, premixed concrete, and precast concrete, etc. With much higher performance than other mixers, SICOMA twin shaft concrete mixer is suitable for all large-and middle-sized concrete projects.
Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

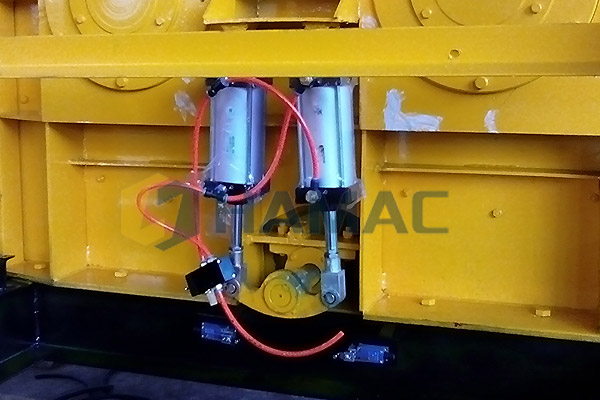

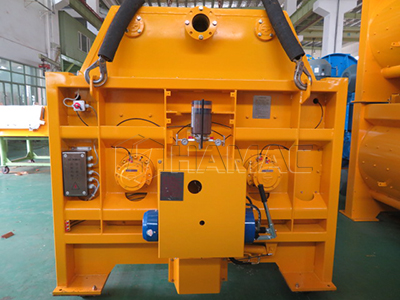

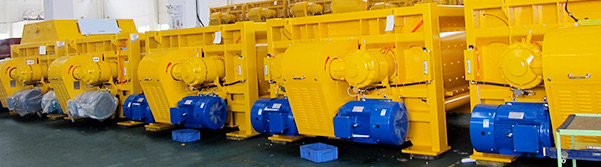

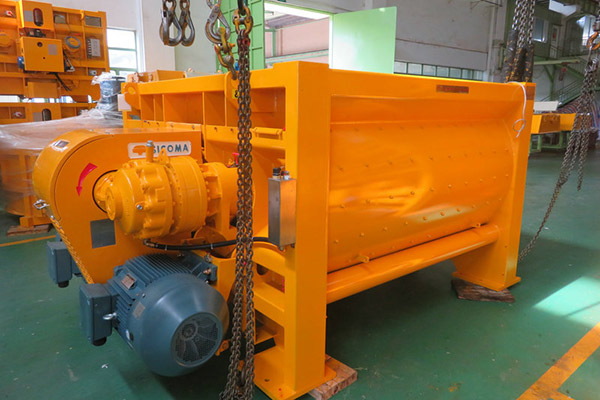

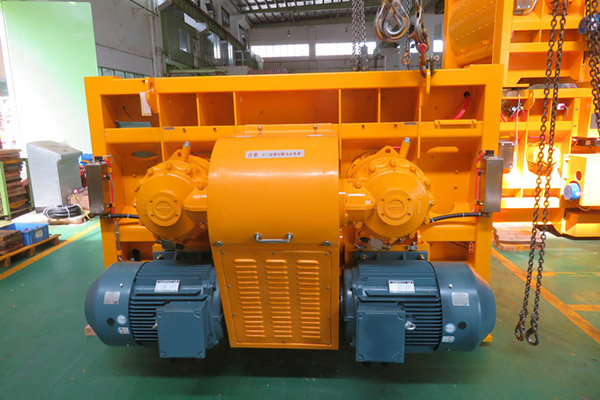

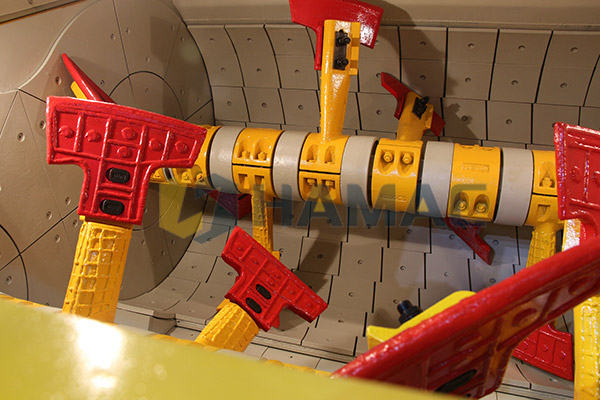

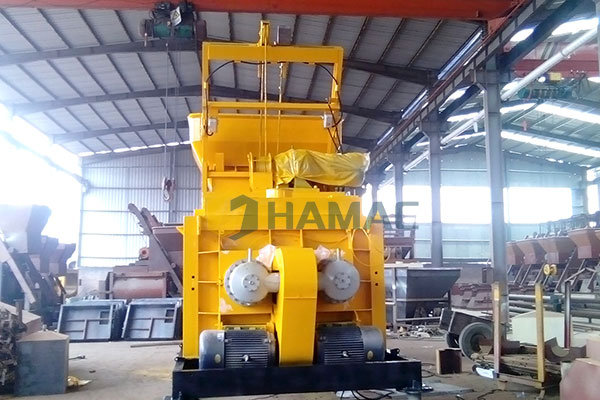

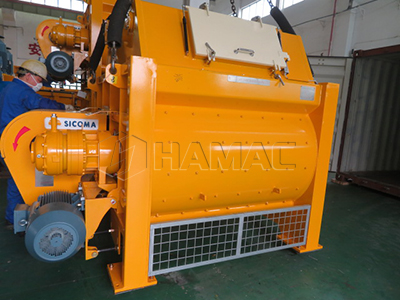

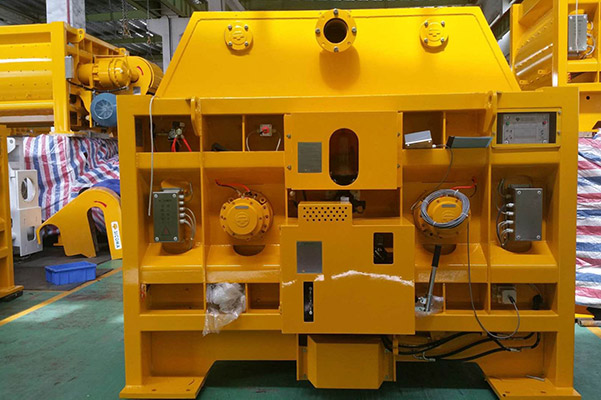

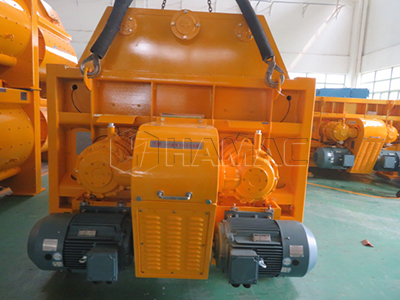

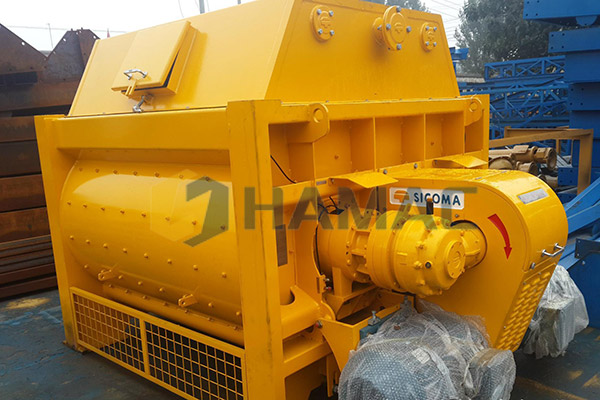

Detailed Photos
Performance
1. Equipped with multi stages shaft seals or Air purged multi seals to enhance bearing life and effectively avoid slurry leakage.
2. Equipped with manual lubrication pump.
3. Unique monitoring system to monitor the running conditions of gearbox, hydraulic door opening and lubrication pump.
4. Watering curtain at top cover to ensure fast and thorough mixing.
5. Easy maintenance, spare parts at reasonable price, high ratio between the performance and the price.
6. Heavy duty design, stable operation. Capacity ranged from 0.75 cu.m. to 6.0 cu.m.
Manufacturing Process
The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Depending on the type of application, all mixers can be equipped with several accessories and customized with many add-ons in order to achieve specific productivity, mixing quality and life expectancy requested in a certain field.
Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers
Type of Mixed Product: Ready-mix concrete, Precast Concrete, Dry Cast, Roller Compacted Concrete (RCC), Self-Compacting Concrete (SCC), Fiber Reinforced Concrete, Lightweight Concrete, Backfilling, Inertization
Please Contact Us for your specific application – We provide solutions for each application.
Specification
| Model | Dry Filling Capacity(L) | Compact Concrete(L) | Scraper | Motor Power(kW) | Weight(T) |
| MAO2250/1500 | 2250 | 1500 | 12 | 2×30 | 6.5 |
| MAO3000/2000 | 3000 | 2000 | 16 | 2×37 | 7.5 |
| MAO4500/3000 | 4500 | 3000 | 18 | 2×55 | 9.2 |
| MAO6000/4000 | 6000 | 4000 | 22 | 2×75 | 11.8 |
| MAO6000/4500 | 6000 | 4500 | 24 | 2×75 | 12.2 |
| MAO7500/5000 | 7500 | 5000 | 20 | 2×90 | 15 |
| MAO9000/6000 | 9000 | 6000 | 24 | 4×55 | 18 |
| MSO1500/1000 | 1500 | 1000 | 12 | 2×18.5 | 5.05 |
| MSO1750/1250 | 1750 | 1250 | 12 | 2×22 | 5.13 |
| MSO2250/1500 | 2250 | 1500 | 14 | 2×30 | 5.62 |
| MEO1250/750 | 1250 | 750 | 10 | 2×18.5 | 4.3 |
| MEO1500/1000 | 1500 | 1000 | 10 | 2×18.5 | 4.4 |
| MEO3000/2000 | 3000 | 2000 | 16 | 2×37 | 6.9 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
