Mobile Concrete Batching Plant
INTRODUCTION

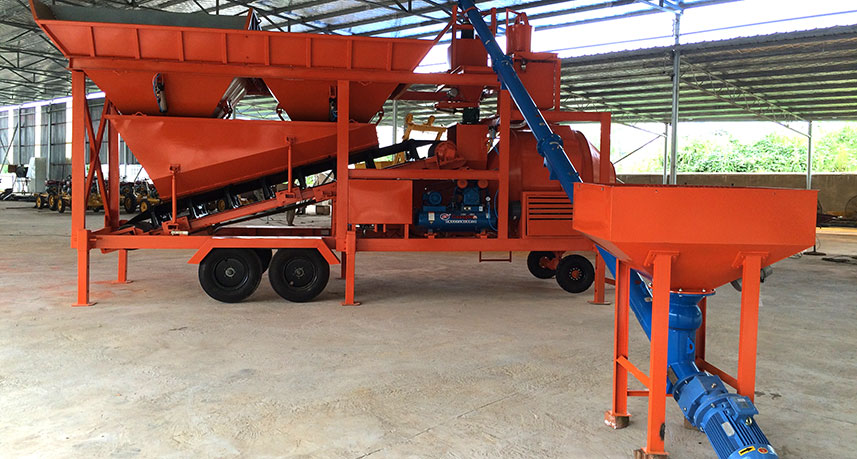

Mobile Concrete Batching Plant is special construction concrete equipment designed independently by our company. It can be installed quickly on site. This mixing plant integrate mixer, batching system, running system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment into together, installing on a transport chassis.
Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

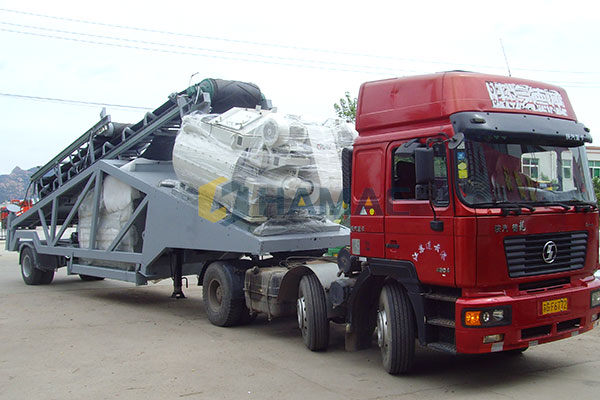

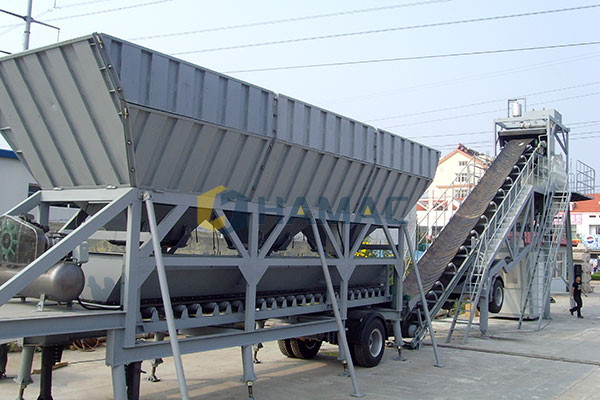

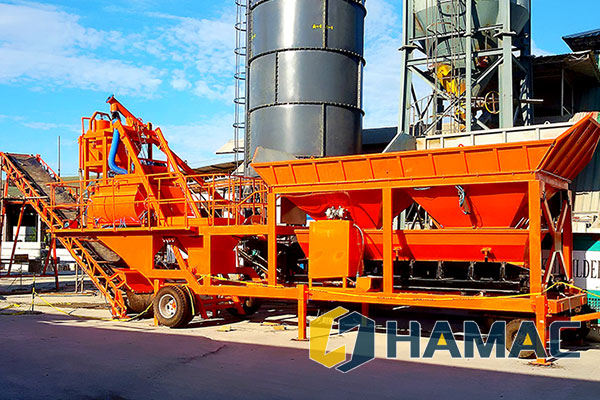

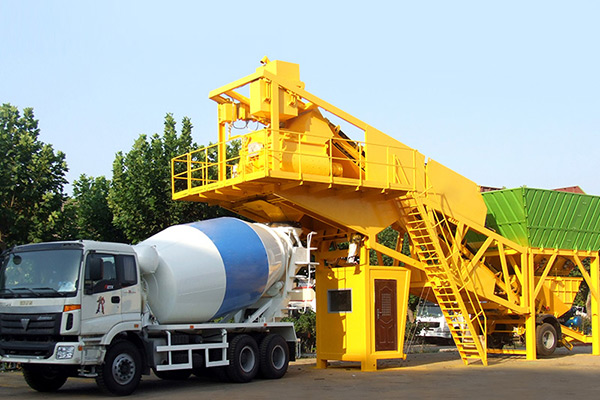

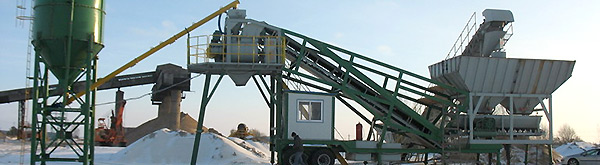

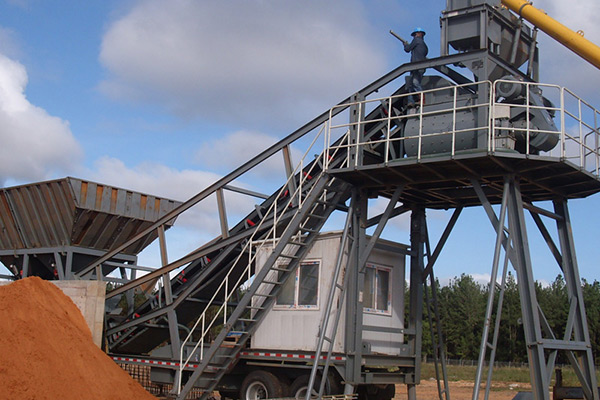

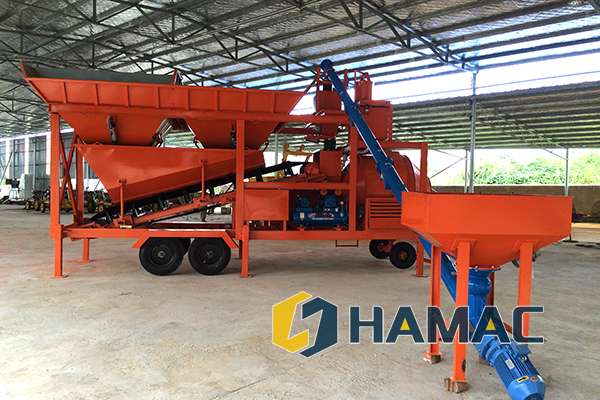

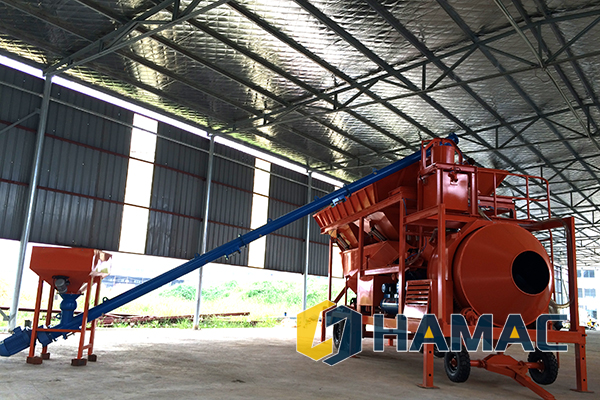

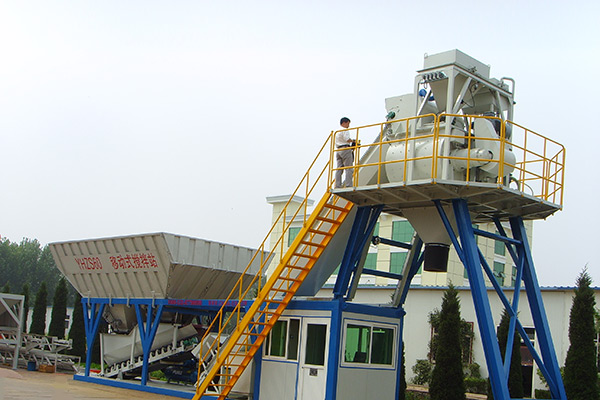

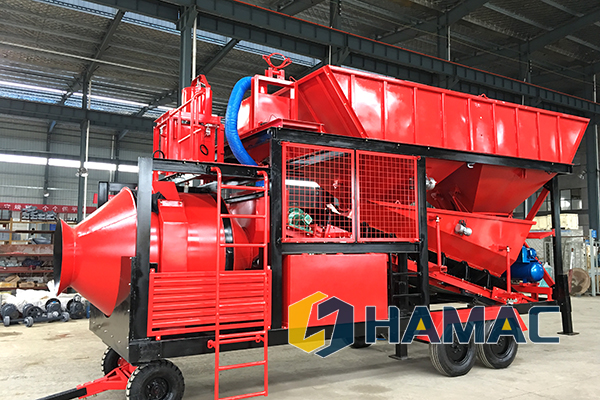

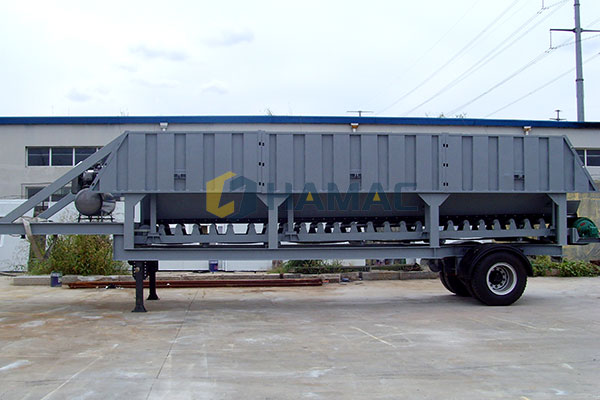

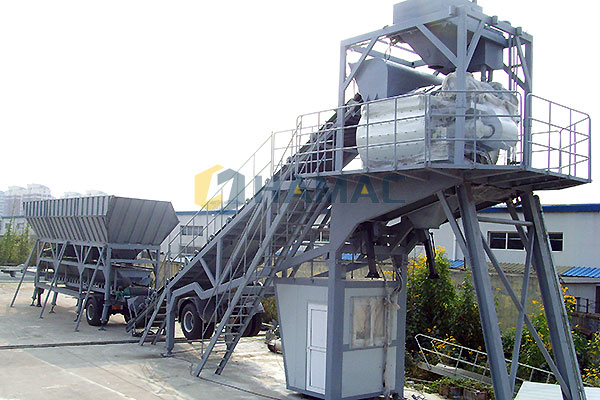

Detailed Photos
Performance
1. Easily to be moved to different working sites;
2. It will take short time to be installed and commissioning;
3. It will save the cost for purchasing the mixing trucks and make the transport time shorter and operation cost lower;
4. The concrete quality will not be affected because of the long distance transportation;
Manufacturing Process
Specification
| Parameter | Model | |||||
| YHZM20 | YHZS25 | YHZS35 | YHZS50/60 | YHZS75 | YHZS100 | |
| Theoretical Productivity(m³/h) | 20 | 25 | 35 | 50/60 | 75 | 100 |
| Mixer | JZC500 | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Batching System | PLD800 | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 |
| Discharging Height(mm) | 1200 | 4000 | 4000 | 4000 | 4000 | 4000 |
| The max. diameter of the aggregates (mm) | 60(80) | 60(80) | 60(80) | 60(80) | 60(80) | 60(80) |
| Transportation dimension（L*W*H）mm | 7700*2350*3900 | 13105*3020*4398 | 15282*3070**4280 | 16241*3485*4167 | 16711*3485*4314 | 18572*2500*4400 |
| The Speed km/h | 10 | 15 | 15 | 15 | 15 | 15 |
| Turning Radius (m) | 10 | 10 | 10 | 10 | 10 | 10 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
