C series Wheeled Skid Steer Loader

INTRODUCTION

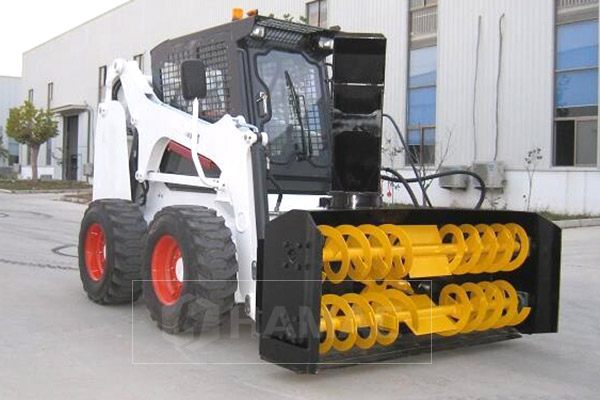

C series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

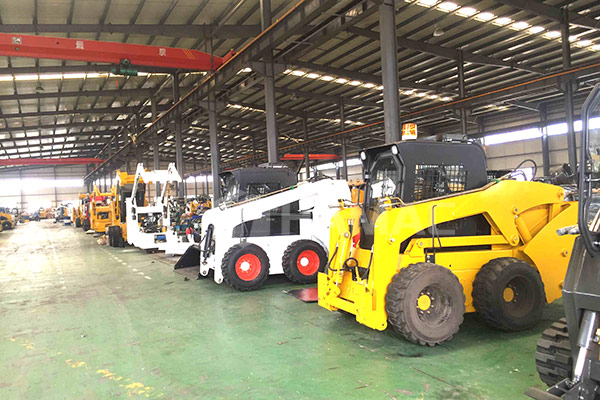

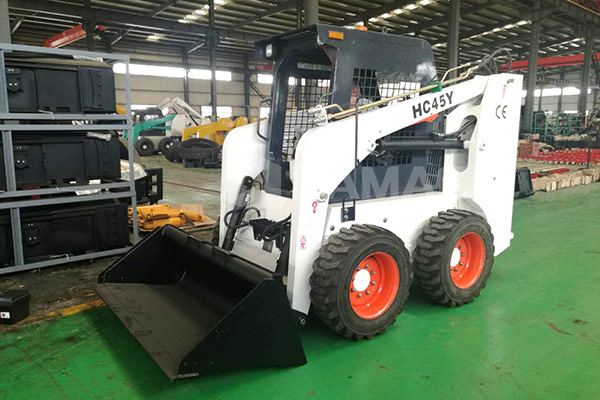

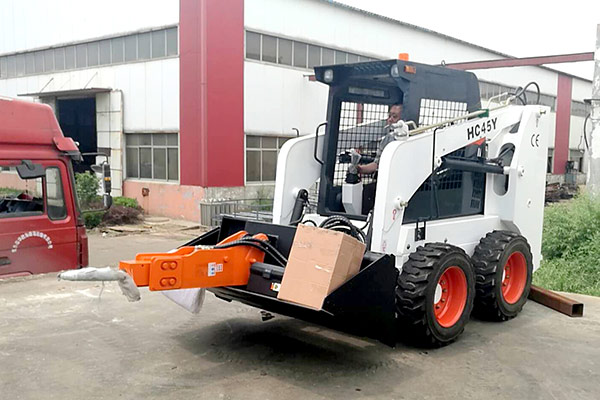

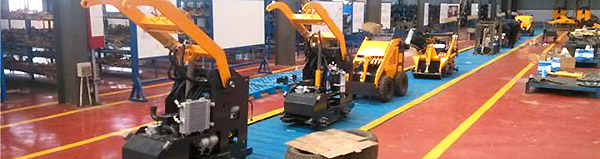

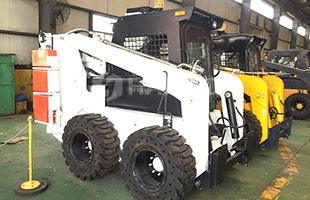

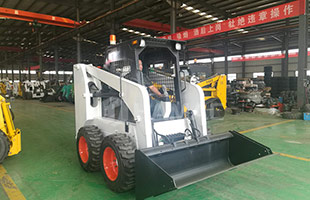

Detailed Photos

FEEDBACK

Performance

1. The body is designed as a strengthened integration. The whole weight is over 4000kg. The manipulator arm has larger bearing capacity. The bucket cylinder is under the transverse reinforcement plate of arm and gets an effective protection. Moreover, it’s discharging height is higher than other similar products.
2. It is equipped with engine of larger power. All the hydraulic parts are European and American products. It has the advantages of stronger motive power, higher efficiency and better heavy-loading working ability.
3. It applies ultralow temperature starting system and can work in -30℃. And it uses oil-water radiator, ensuring the engine oil work continuously and normally in high temperature.
4. C series skid steer loader can provide high flow flux 140L/min.

Skid Steer Loader Attachments

Skid steer loader attachments offers an extensive, ever-growing line of high-quality skid steer attachments for construction and farming equipment.

Combination Bucket

Pallet Forks

Dozer Blade Grader Leveler

Snow Pusher

Grapple Bucket

Grapple Rake

Bale Squeeze

Grapple Rock Bucket

Hay Spear

Mixer

Digging Backhoe

Utility Digging Backhoe

Pick Up Broom

Tree Spade

Get all the Skid Steer Loader Attachments

From drive units to fully accessorized bundles, Skid Steer Solutions has all your skid steer auger needs covered. Have a look at each of our auger options today and be amazed at everything a skid steer auger attachment can do for you.

Specification

Model	HC75C	HC100C
Operating Load (kg)	1050	1200
Max. Speed (km/h)	12	12/18
Hydraulic flow (L/min)	75	75
Max. Working Flow (L/min)	120	140
Tire Model	12-16.5	12-16.5
Rated Power (kW)	55	74
Fuel tank Volume (L)	75	90
Self Weight (kg)	3500	3550
Bucket Volume (m³）	0.5	0.55

Structure Data:

Main data Model	HC75C	HC100C
Overall operating height (mm)	4070	4070
Height to bucket hinge pin (mm)	3150	3150
height to top of cab (mm)	2160	2160
Height to bottom of level bucket(mm)	2983	2983
Overall length without bucket(mm)	2880	2880
overall length with bucket(mm)	3580	3580
Dumping angle at maximum height(° )	40	40
Dumping height(mm)	2450	2450
Dumping reach(mm)	700	700
Rollback o bucket on ground(° )	30	30
Rollback of bucket at full height(° )	104	104
Wheelbase(mm)	1115	1185
Ground clearance(mm)	205	205
Angle of departure(° )	20	20
Front turning radius without bucket(mm)	1250	1278
Front tuning radius(mm)	2112	2144
Rear tuning radius(mm)	1774	1857
Rear axle to bumper (mm)	1082	1082
Tread width, centerline to centerline (mm)	1500	1500
Width (mm)	1880	1880
Bucket width (mm)	1880	1880
