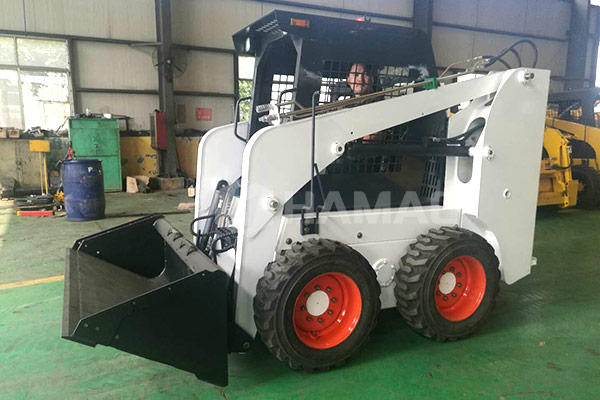

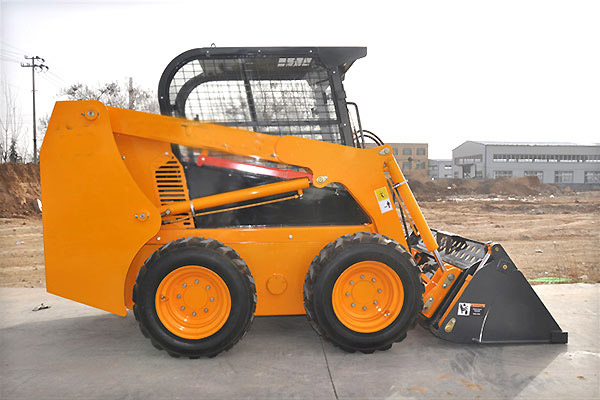

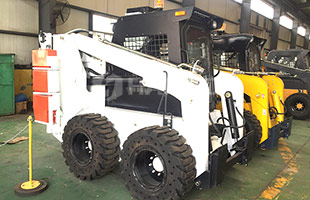

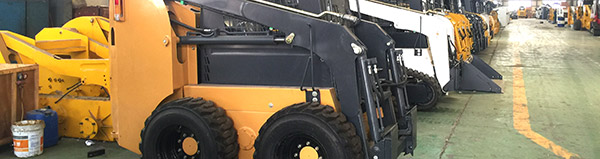

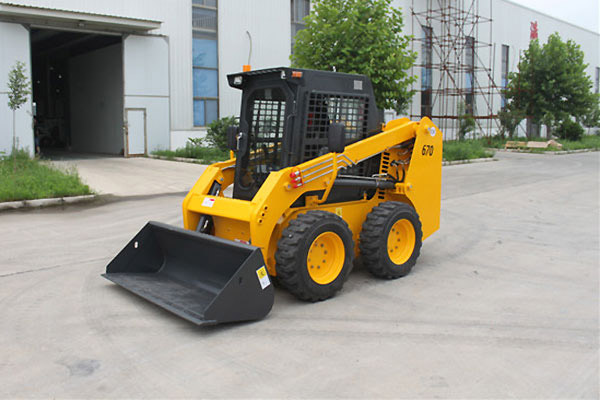

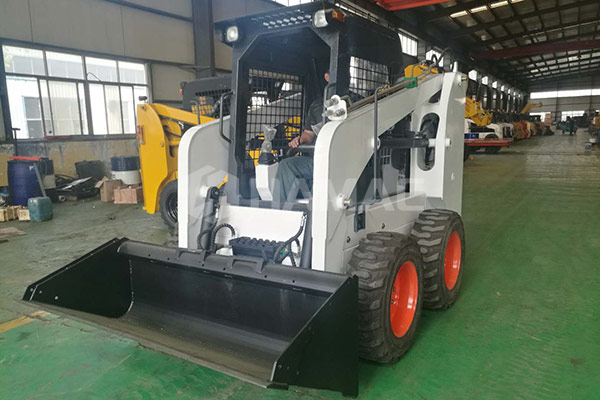

Detailed Photos
Performance

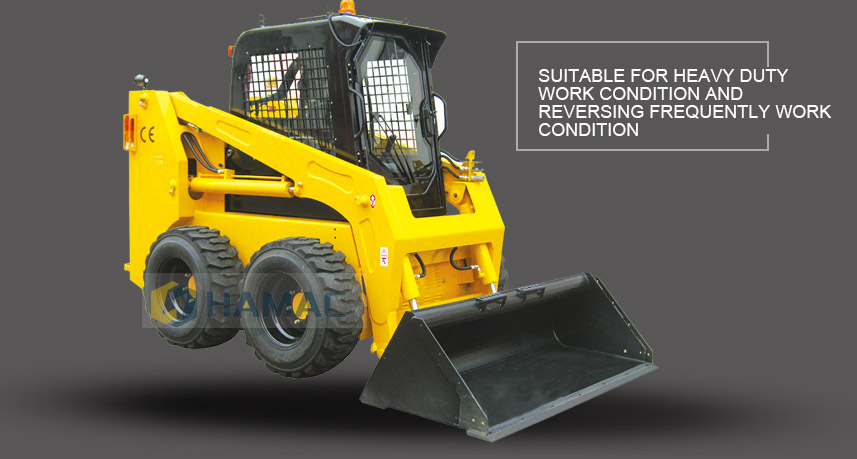

1. Z series is equipped with special gear transmission system, an unique design in China. The driving motor is high-speed plunger motor, reduction gear system is heavy duty type, longer service life. It is suitable for heavy duty work condition and reversing frequently work condition;
2. Powerful diesel engine equipped with transfer case, can be equipped with big power main pump and big flow gear pump. So the loader will provide stronger tractive force and high flow output for attachment;

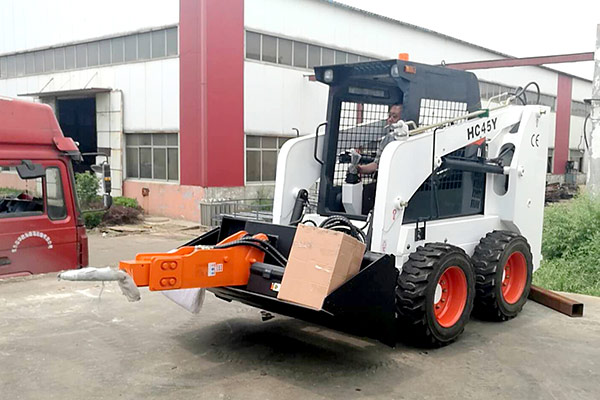

Skid Steer Loader Attachments
Skid steer loader attachments offers an extensive, ever-growing line of high-quality skid steer attachments for construction and farming equipment.
- Combination Bucket
- Pallet Forks
- Dozer Blade Grader Leveler
- Snow Pusher
- Grapple Bucket
- Grapple Rake
- Bale Squeeze
- Grapple Rock Bucket
- Hay Spear
- Mixer
- Digging Backhoe
- Utility Digging Backhoe

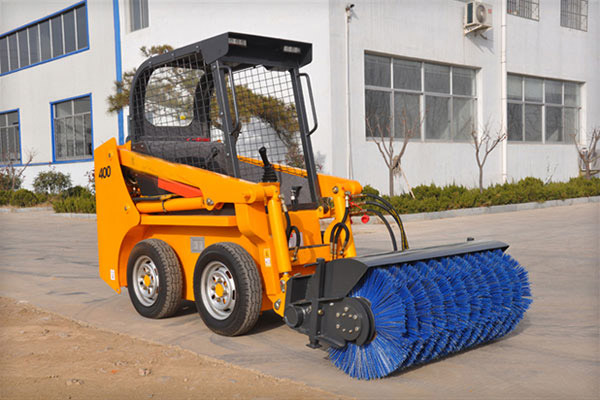

- Pick Up Broom
- Tree Spade
From drive units to fully accessorized bundles, Skid Steer Solutions has all your skid steer auger needs covered. Have a look at each of our auger options today and be amazed at everything a skid steer auger attachment can do for you.
Specification
Model | HC70Z | HC100Z |
Operating Load (kg) | 1050 | 1200 |
Max. Speed (km/h) | 12 | 12/18 |
Hydraulic flow (L/min) | 75 | 75 |
Tire Model | 12-16.5 | 12-16.5 |
Rated Power (kW) | 55 | 74 |
Fuel tank Volume (L) | 75 | 90 |
Self Weight (kg) | 3500 | 3550 |
Bucket Volume (m³) | 0.5 | 0.55 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
Structure Data:
Main data/Model | HC70Z | HC100Z |
Overall operating height (mm) | 4070 | 4070 |
Height to bucket hinge pin (mm) | 3150 | 3150 |
height to top of cab (mm) | 2160 | 2160 |
Height to bottom of level bucket(mm) | 2983 | 2983 |
Overall length without bucket(mm) | 2880 | 2880 |
overall length with bucket(mm) | 3580 | 3580 |
Dumping angle at maximum height(° ) | 40 | 40 |
Dumping height(mm) | 2450 | 2450 |
Dumping reach(mm) | 700 | 750 |
Rollback o bucket on ground(° ) | 30 | 30 |
Rollback of bucket at full height(° ) | 104 | 104 |
Wheelbase(mm) | 1115 | 1185 |
Ground clearance(mm) | 205 | 205 |
Angle of departure(° ) | 20 | 20 |
Front turning radius without bucket(mm) | 1250 | 1278 |
Front tuning radius(mm) | 2112 | 2144 |
Rear tuning radius(mm) | 1774 | 1857 |
Rear axle to bumper (mm) | 1082 | 1082 |
Tread width, centerline to centerline (mm) | 1500 | 1500 |
Width (mm) | 1880 | 1880 |
Bucket width (mm) | 1880 | 1880 |
