JZ series Concrete Mixer

JZ series Concrete Mixer video

INTRODUCTION

JZC/JZM series concrete mixer is a self-falling concrete mixing machine which discharging with the double cone barrel rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely. It is suitable for the common construction, road and bridge, and prefabricated concrete parts factory. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

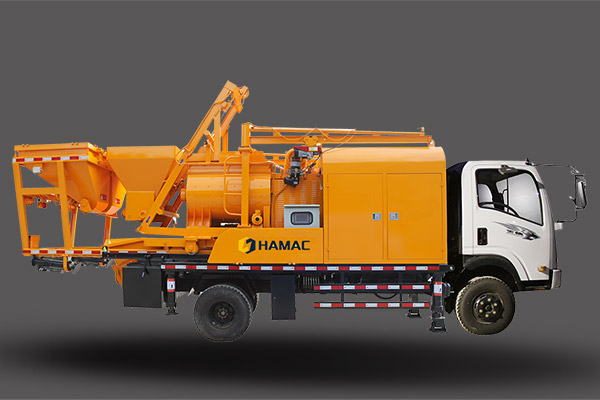

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump  - Get quote or inquiry!

inquiry! Leave a Message!

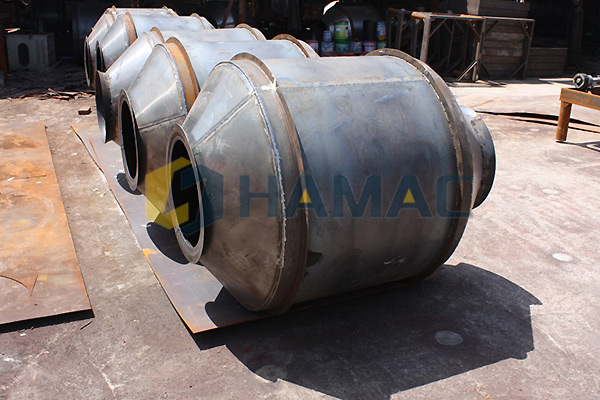

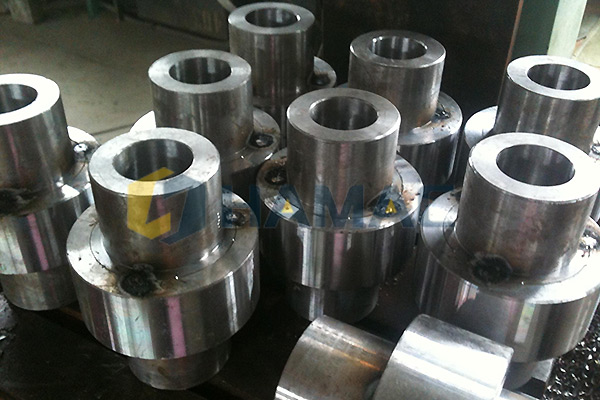

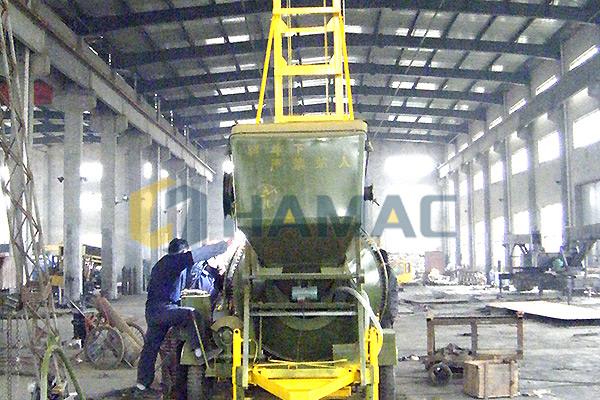

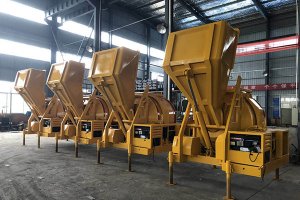

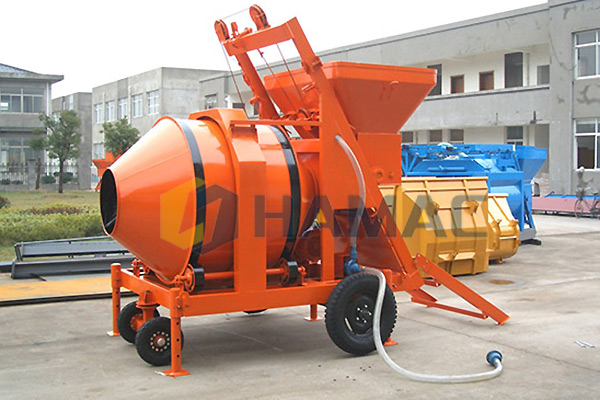

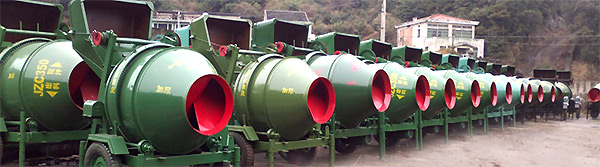

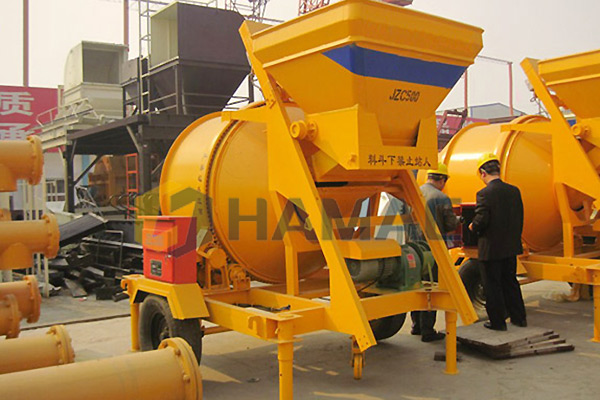

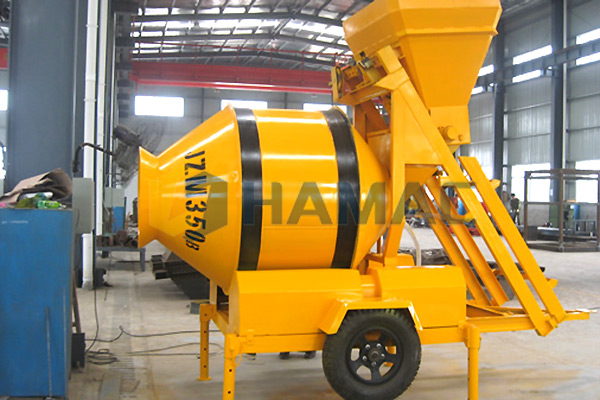

Detailed Photos

Specification

Model(concrete agitator) JZC250 JZC350 JZM350 JZC500 JZM500 JZC750
Discharge volume (L) 250 350 350 500 500 750
Charging volume (L) 320 560 560 800 800 1200
Capacity (m3/h) 6-8 10~14 15~18 18~20 20~25 25~30
Drum rotating
speed(r/min)
17 14 15 13 13 13
Max. aggregate size
(mm)
60 60 60 60~80 60~80 60~80
Water feeding
precision
≤2% ≤2% ≤2% ≤2% ≤2% ≤2%
Mixing power (kw) 4 5.5 5.5 11 11 15
Lifting power (kw) 4 4.5 4.5 5.5 5.5 7.5
Water pump (kw) 0.55 0.55 0.55 0.75 0.75 1.1
Tyre type 6.50-16 6.50-16 6.50-16 7.50-16 7.50-16
Max. hauling speed
(kw/h)
20 20 20 20 20
Dimensions (mm) 2260x1990
x2750
2766x2140
x3000
3800x2050
x2690
5226x2200
x5460
6200x2110
x5300
6116x2056
x6060
Weight (kg) 1300 1950 1970 3100 3200 4200

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Tags: concrete mixer manufacturer in SriLanka China concrete mixer in Bangladesh concrete mixing machine in Bangladesh concrete machinery for sale in Bangladesh 10 m3 concrete pump a concrete mixers in peru Wet Concrete Sprayer Shotcrete machine Portable batching mixer in india takeuchi skid steer for sale in Bangladesh cement silo in Colombia

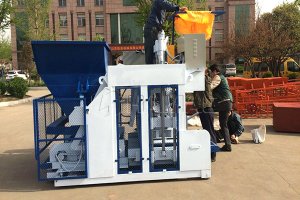

Concrete Block Making Machinery Truck-mounted Concrete Boom Pump
