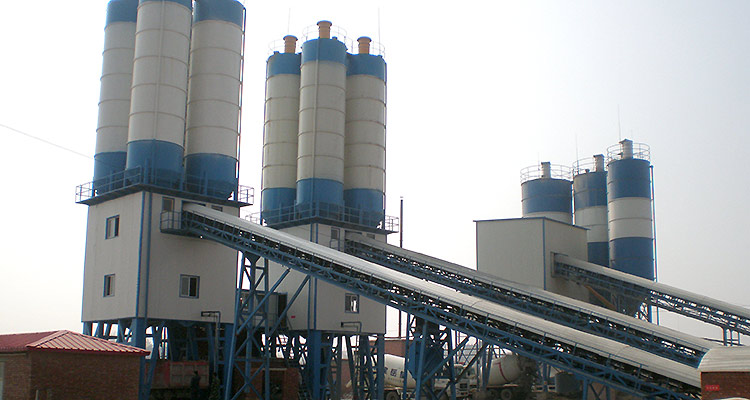

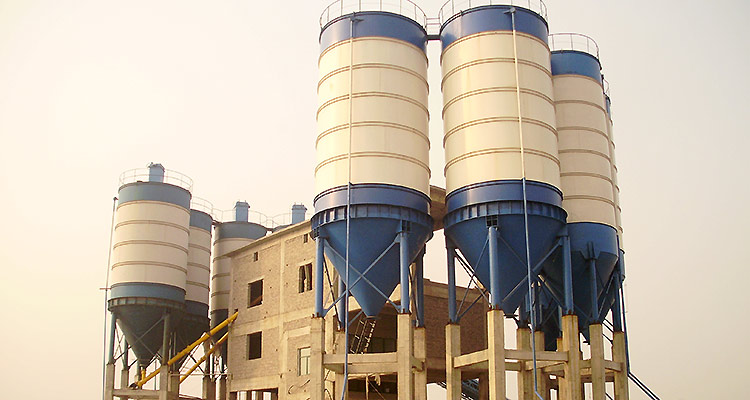

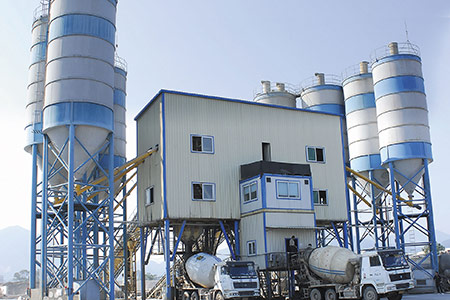

Clients' Working Site
Advantage
1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS4000 twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
Specification
Model | HZS240 |
Theoretic productive | 240m3/h |
Concrete mixer | JS4000 |
Maximum aggregate size | 80mm |
volume of aggregate bin | 4×18m3 |
aggregate transporting way | Belt conveyor |
aggregate weighing | 2×4000Kg ±2% |
cement weighing | 1800Kg ±1% |
fly ash weighing | 800Kg ±1% |
Water weighing | 800Kg ±1% |
additive weighing | 50Kg ±1% |
total power | 205Kw |
total weight | 77 |
Overall dimension (working condition: LXWXH) | 585000mm×7000mm×129000mm |
discharging height | 4.1 m |
silo (optional) | As client request, the quantity and volume is optional. |
screw conveyor (optional) | One φ273 or φ323screw conveyor for each silo |
