JZR350DH Concrete Mixer
INTRODUCTION
JZR350DH diesel concrete mixer is driven by diesel engine. There are two feeding modes: climbing bucket feeding and dump hopper feeding. JZR series diesel engine concrete mixer can be drawn by wheels, so it is easy to move. It is controlled by electric control box, which makes the operation very easy.
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

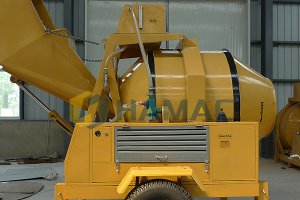

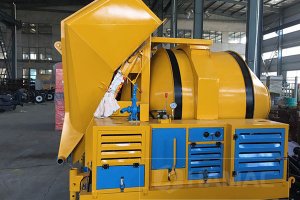

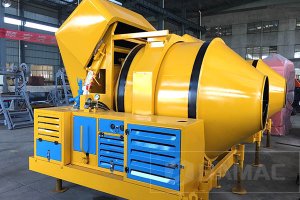

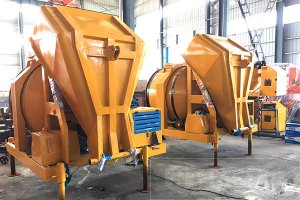

Detailed Photos
Performance
1. Diesel engine, especially suitable for the areas thatwithout electricity.
2. Can be easily moved between different construction sites.
3. Easy operation; stable performance; Low energy consumption.
4. Reasonable structure, higher reliability, mixing evenly with high productivity.
Manufacturing Process
Raw material
Using in for the concrete block machines
Making Blocks and Bricks:
Specification
| Model | JZR350DW | JZR350DH | JZR500DH |
| Discharging Capacity(L) | 350 | 350 | 500 |
| Charging Capacity(L) | 560 | 560 | 800 |
| Productivity(m3/h) | 10-14 | 10-14 | 20-22 |
|
Maximum Size of Aggregate(mm) |
60 | 60 | 80 |
| Hopper Lifting | Hydraulic system | Hydraulic system | Hydraulic system |
| Diesel Engine Power(kw) | 13.2 | 13.2 | 16.2 |
| Power of Water Pump(kw) | 0.75 | 0.75 | 2.2-3 |
| Accuracy of Water Supply | Error≤2﹪ | Error≤2﹪ | Error≤2﹪ |
|
Dimensions in Container (mm) |
2750×2200×2400 | 2300×1900×2500 | 2300×3300×2500 |
| Overall Weight (kg) | 1350 | 1400 | 2300 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
