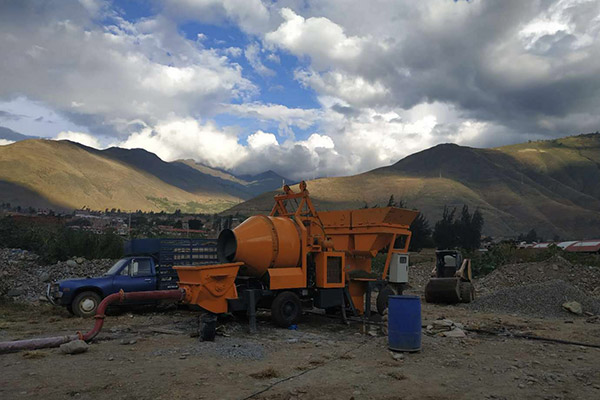

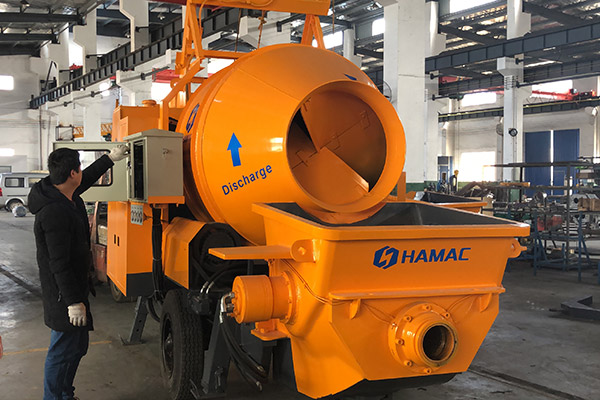

Detailed Photos
Performance
Specification

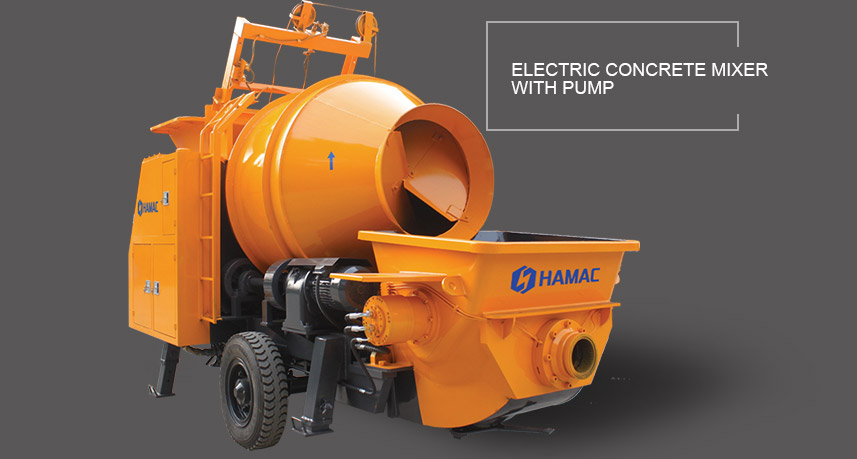

Electric Driven Concrete Mixer with Pump | ||||
Different parts and information | Brand/Origin | Quantity | Specification | |
Power | 380V | Local Electric | 1 pc | Customized accept |
Electric Component | / | / | Siemens/Schneider/Omron | |
Mixing System | Mixer | Domestic | 1 set | JZM450 drum mixer |
Mixing Motor | Domestic | 2 pc | 5.5KW | |
Hoist Motor | Nanjing te zhong | 1 pc | 5.5KW | |
Submersible Pump | Shanghai Bali | 1 pc | 0.75KW, pumping water to mixer | |
Max. Theoretical Mixing Output | / | / | 18-22m³/h | |
Pumping System | Main Motor | Siemens/Zhaoyang | 1pc | 37KW |
Motor Rated Speed | / | / | 1480Rpm | |
Main Oil Pump | Kawasaki 112 | 1pc | 40 cubic meters per hour. | |
Double Gear Pump | Domestic | 1set | 25&16 | |
Valves | Tokyo Keiki | 4sets | overflow and directional valves | |
Main Oil Cylinder | Domestic | 2pcs | Φ100*Φ70*1000mm | |
Delivery Cylinder | Domestic | 2pcs | Φ200*1000mm | |
S Valve | Domestic | 1pc | Φ200mm | |
Cutting Ring | alloy | 1pc | Φ200mm | |
Glass Wear Plate | alloy | 1pc | Φ200mm | |
Max. Theoretical Pumping Output | / | / | 40m³/h | |
Outlet Pressure | / | / | 8Mpa | |
Hydraulic System Type | / | / | Open | |
Motor Rated Voltage | / | / | 380v | |
Max. Aggregate Size | / | / | Pebble:40 Crushed Stone:30 | |
Concrete Outlet Diameter | / | / | Φ180mm | |
Hopper Capacity × Filling Height | / | / | 800*1000 (L*mm) | |
Machine Size(LxWxH) | / | / | 4960*2100*2500 mm | |
Total Weight | / | / | 5300kg | |
Tyre Size | / | / | 700R16 | |
Towing Speed | / | / | Max. 8km/h |
Note: Our products are updated constantly, if there is any data discrepancy ,please refer to the actual product.
