JZC350 Concrete Mixer
INTRODUCTION
Since the machine is off-bipyramidal reversal discharging mobile concrete mixer, mixing semi-rigid plastic and concrete. Stir mixing tube is transferred, a reversal expected. Each tank can be mixed with 350Lconcrete (after absorption of concrete volume), to produce 10-14 million cubic meters per hour. Applies to construction sites, roads, bridges projects and small and medium-sized concrete structures plant. Mixing fixed, it can dig the hole, the hopper be flush with the ground, feed convenience and reduce labor intensity. The machine is a novel structure, with high efficiency, mixing good quality, light weight, form aesthetic advantages, is a more advanced model.
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

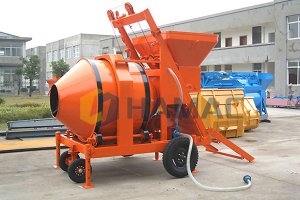

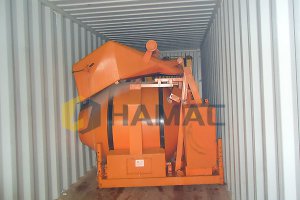

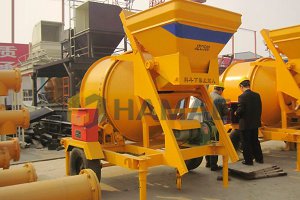

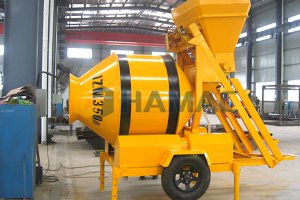

Detailed Photos
Performance
1. Adopt electric motor for power supply;
2. Mixing drum is driven through gear ring. Low noise, Low energy consumption, no slip in rainy weather, easily operate.
3. JZC series concrete mixers are portable concrete mixers with 2 tyres, except JZC750 is fixed concrete mixer.
4. Assemble lifting bucket, which mouth is lower than ground, be conveniently for aggregate loading and feeding.
Manufacturing Process
Raw material
Using in for the concrete block machines
Making Blocks and Bricks:
Specification
| Model | JZC250 | JZC350 | JZM350 | JZC500 | JZM500 | JZC750 |
| Discharge volume (L) | 250 | 350 | 350 | 500 | 500 | 750 |
| Charging volume (L) | 320 | 560 | 560 | 800 | 800 | 1200 |
| Capacity (m3/h) | 6-8 | 10~14 | 15~18 | 18~20 | 20~25 | 25~30 |
|
Drum rotating speed(r/min) |
17 | 14 | 15 | 13 | 13 | 13 |
|
Max. aggregate size (mm) |
60 | 60 | 60 | 60~80 | 60~80 | 60~80 |
|
Water feeding precision |
≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
| Mixing power (kw) | 4 | 5.5 | 5.5 | 11 | 11 | 15 |
| Lifting power (kw) | 4 | 4.5 | 4.5 | 5.5 | 5.5 | 7.5 |
| Water pump (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 |
| Tyre type | 6.50-16 | 6.50-16 | 6.50-16 | 7.50-16 | 7.50-16 | |
|
Max. hauling speed (kw/h) |
20 | 20 | 20 | 20 | 20 | |
| Dimensions (mm) |
2260x1990 x2750 |
2766x2140 x3000 |
3800x2050 x2690 |
5226x2200 x5460 |
6200x2110 x5300 |
6116x2056 x6060 |
| Weight (kg) | 1300 | 1950 | 1970 | 3100 | 3200 | 4200 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
