JZC500 Concrete Mixer
INTRODUCTION
JZC/JZM series concrete mixer is a self-falling concrete mixing machine which discharging with the double cone barrel rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely. It is suitable for the common construction, road and bridge, and prefabricated concrete parts factory.
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

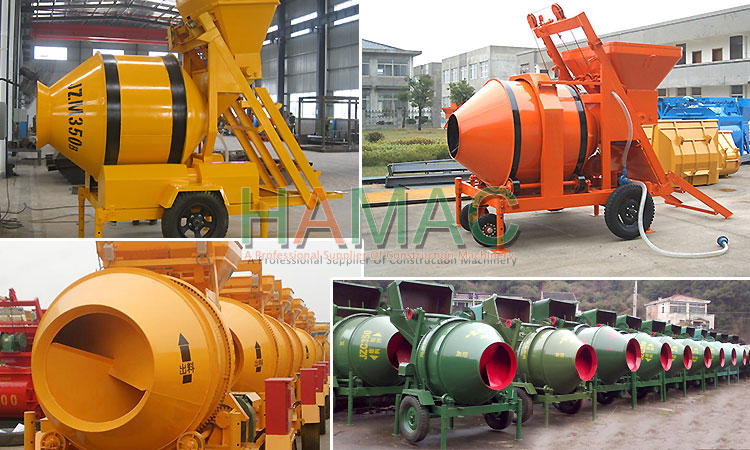

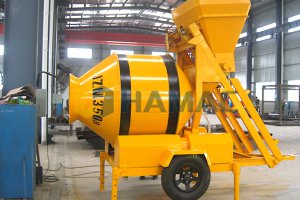

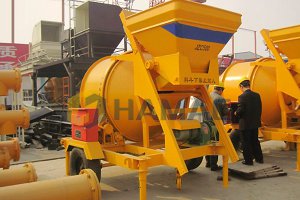

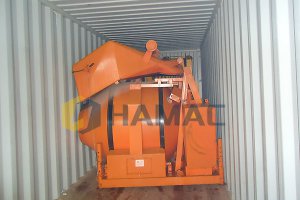

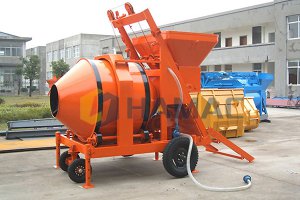

Detailed Photos
Performance
1. Special drum prolongs the service life of the steel wire rope.
2. Precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose Hamac.
5. Concrete intensity test proves the excellent performance of the mixing equipment.
Manufacturing Process
Raw material
Using in for the concrete block machines
Making Blocks and Bricks:
Specification
| Model | JZC250 | JZC350 | JZM350 | JZC500 | JZM500 | JZC750 |
| Discharge volume (L) | 250 | 350 | 350 | 500 | 500 | 750 |
| Charging volume (L) | 320 | 560 | 560 | 800 | 800 | 1200 |
| Capacity (m3/h) | 6-8 | 10~14 | 15~18 | 18~20 | 20~25 | 25~30 |
|
Drum rotating speed(r/min) |
17 | 14 | 15 | 13 | 13 | 13 |
|
Max. aggregate size (mm) |
60 | 60 | 60 | 60~80 | 60~80 | 60~80 |
|
Water feeding precision |
≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
| Mixing power (kw) | 4 | 5.5 | 5.5 | 11 | 11 | 15 |
| Lifting power (kw) | 4 | 4.5 | 4.5 | 5.5 | 5.5 | 7.5 |
| Water pump (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 |
| Tyre type | 6.50-16 | 6.50-16 | 6.50-16 | 7.50-16 | 7.50-16 | |
|
Max. hauling speed (kw/h) |
20 | 20 | 20 | 20 | 20 | |
| Dimensions (mm) |
2260x1990 x2750 |
2766x2140 x3000 |
3800x2050 x2690 |
5226x2200 x5460 |
6200x2110 x5300 |
6116x2056 x6060 |
| Weight (kg) | 1300 | 1950 | 1970 | 3100 | 3200 | 4200 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
