Concrete Mixing Transport Truck

Concrete Mixing Transport Truck video

INTRODUCTION

Concrete Mixing Transport Truck is an important vehicle to transport concrete of ready mixed from concrete batching plant to the work sites. Concrete mixing transport trucks, also called cement transport trucks, whose working method is quite straightforward when you think about it. A drum is installed on a chassis of a cement transport truck . The mixer drum is either driven by the truck engine or by a separate power take off device. There are many spiral blades inside the drum. When in the process of mixing and transporting the drum of concrete trucks rotate in one direction, generally rotate as a direction of clockwise (may vary with the manufacturer). The concrete in the drum is pushed towards the bottom of the drum so as to to get uniformity of concrete. While transporting the concrete to the construction site, it is rotating clockwise and keeping the concrete inside constantly stirring. Once concrete mixing transport trucks arrive at the work site to pour the concrete, the drum rotation is reversed to anti-clockwise. Now the blade in the drum pushes the concrete towards the drum outlet, then concrete through the discharging chute flow to the construction site ( The discharging chute could be turned for 180 degree ).

Hot Sale in stock: HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck   - 6m3 Concrete Mixing Truck  - 8m3 Concrete Mixing Truck   - 10m3 Concrete Mixing Truck   - HMC1.5 Self-loading Concrete Mixer  - HMC4.0 Self-loading Concrete Mixer  Get quote or inquiry!

inquiry! Leave a Message!

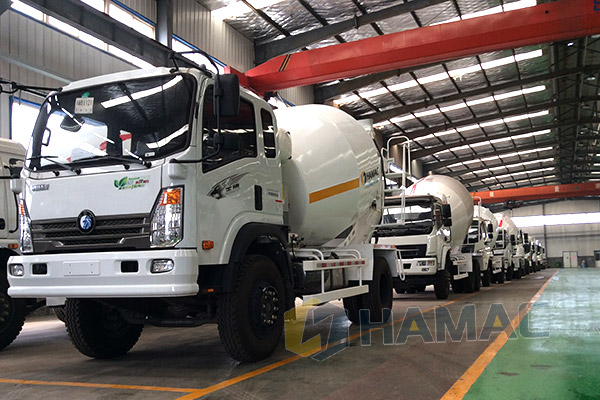

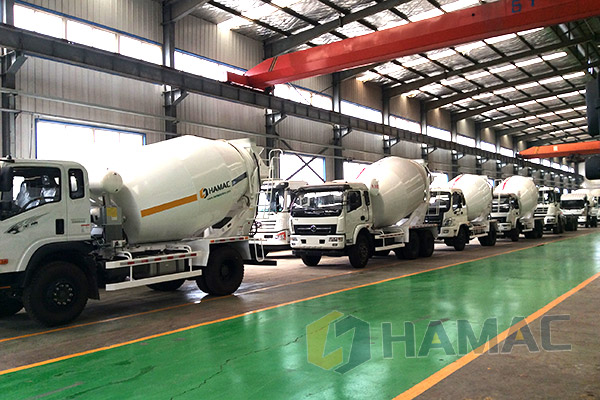

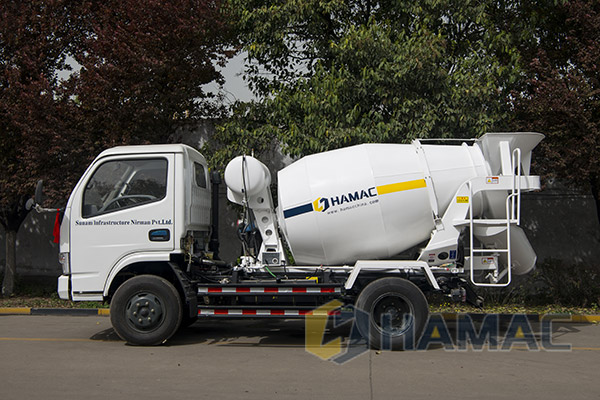

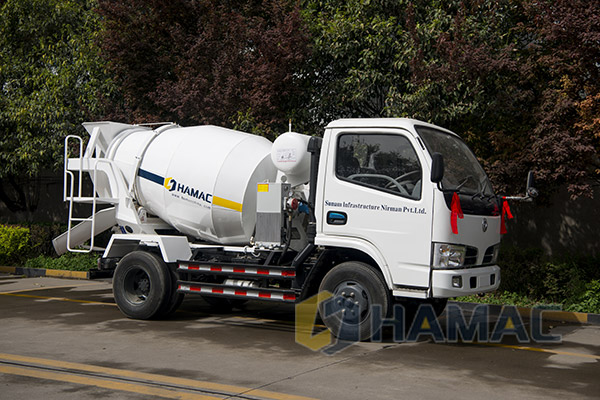

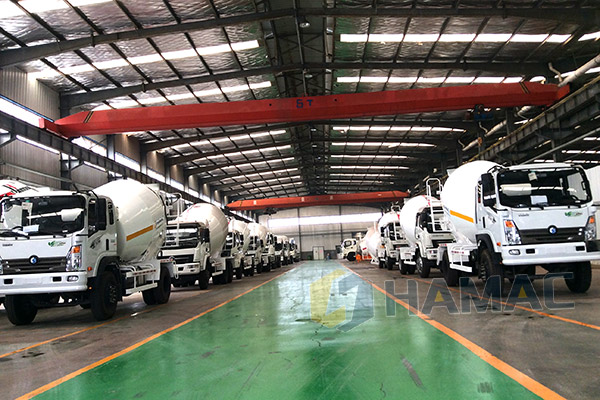

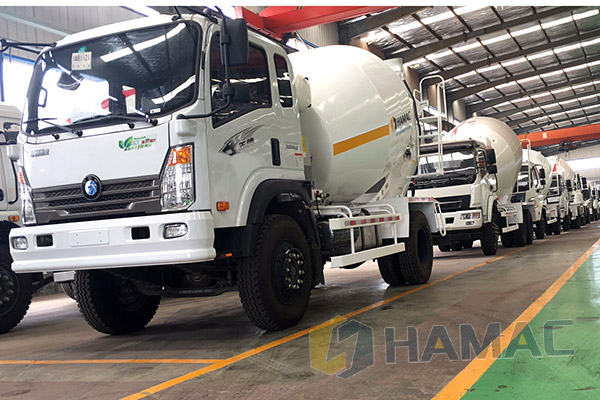

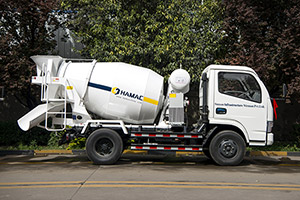

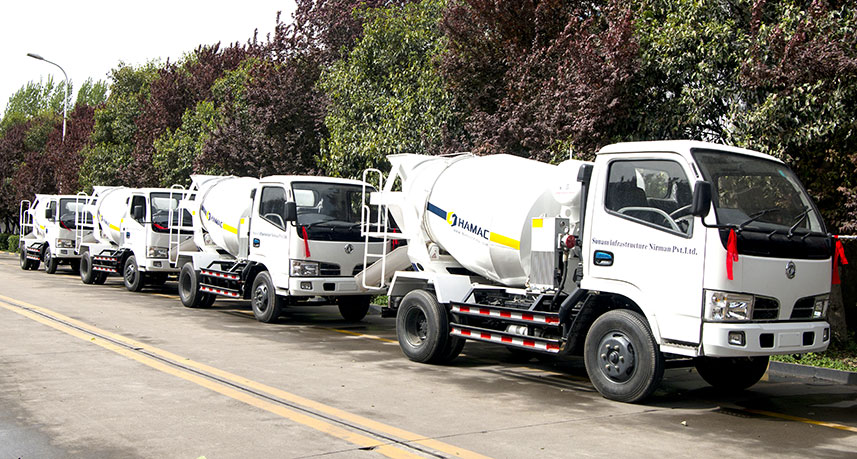

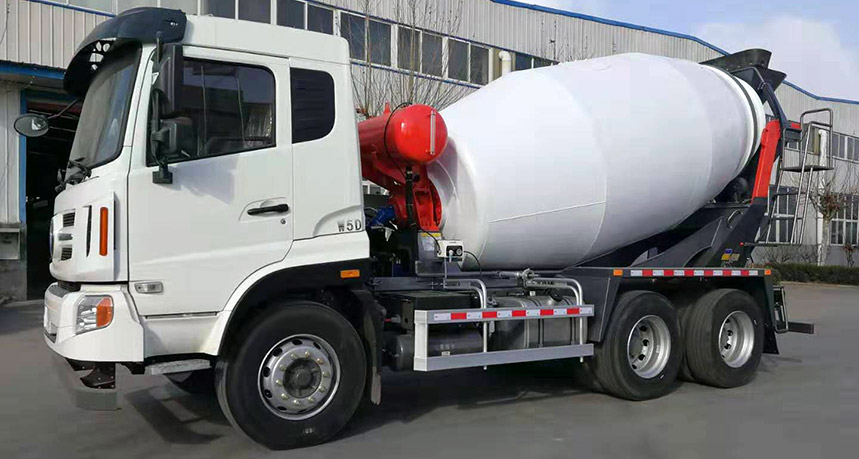

Detailed Photos

Specification

Capacity 4m³ 6m³   4m³ 6m³
Chassis brand FAW/FOTON/DFAC Dimension (mm) 6880*2412*3500
Wheel base (mm) 3650 4100 Feeding Speed (m³/min) ⪖1.5 ⪖2
Track Front (mm) 1725 Discharging speed (m³/min) ⪖1 ⪖1.5
Track Rear (mm) 1670 Drum rotation speed (r/min) 0-16
Tire Type 9.00-20,9.00 R20 Rest Rate ⪕0.1%
Engine Emission standard B17691-2005 National IV, GB3847-2005
Engine brand YUCHAI
Power 130HP
Gearbox Italy Interpump
Motor Italy Interpump
Hydraulic Pump Italy Interpump
Capacity 8m3
Chassis brand FAW/FOTON/DFAC
Chassis Demission(mm) 8300×2470×2850
Wheelbase(mm) 3850+1300,4150+1300
Number of axles 3
Track front(mm) 1980
Track rear(mm) 1860/1860
Front overhang(mm) 1250/2300
Rear overhang (mm) 1250/2850
Approach angle/Departure angle 34/15,34/13
Tyre Number 10
 Tyre Size 10.00-20,11.00-20
 Plate Spring Number 9  10
 Fuel  Diesel
Engine emission standard   National IV
Engine brand YUCHAI
 Power 215kw/290HP
Engine Rated speed(r/min) 2800
 Engine Idle speed(r/min) 700~750
Clutch Biplate Dried constant joint
Transmissions type Shaft drive transission
Drive mode Rear Wheel Drive
Turning form Hydraulic power steering
Service brake Air-brake
Parking braking Air brake braking
Max. speed(km/h) 85
Concrete mixing truck Demission(mm) 8700,9550×2500×3760,3880
Mixing volume(m³) 8
Feeding rate(m³/min) ≥2
Discharging rate(m³/min) ≥1.5
Drum rotation speed(r/min) 3~9
Discharging remnant rate ≤0.1%
Water supply mode  Air pressure supply
water tank volume(L) 200
Radiator 24v air-cooled
 Reduction box Fuxin
 Motor Interpump
 Hydraulic pump Interpump
Model Name Technical data
Unit 9 m3 10m3
Vehicle data Model   ZZ1257N4048W/ZZ1256N4046C1 ZZ1257N4048W/ZZ1256N4046C1
Total Length mm 9800 9800
Total Width mm 2490/2490 2490/2490
Total Height mm 3830 3830
Chassis Model   HOWO ZZ1257N4048W/ ZZ1256N4046C1 HOWO ZZ1257N4048W/ ZZ1256N4046C1
Overall Weight kg 25000 25000
Curb Weight kg 15650 15650
Wheel Base mm 4025+1350 4025+1350
Front Tread mm 2022 2022
Rear Tread mm 1830 1830
Tyre Model   11.00-20,12.00-20 11.00-20,12.00-20
Front Overhang mm 1500 1500
Rear Overhang mm 2980 2980
Min.
Turning Radius
m 10.1 10.1
Max. Traveling Speed Km/h 86/97 86/97
Steering Device(GERMANY )   ZF8098 ZF8098
Oil Consumption per 100 km(under limited conditions) L 34 34
Engine Engine Model   WD615.95(E) WD615.95(E)
Cylinder Number and Arrangement   Linear 6-cylinder Linear 6-cylinder
Engine max. output power kw 247/2200 247/2200
Max. Engine Torque N.M 1420/1100 1420/1100
Working Device Mixing Drum Volume m3 17.05 17.05
Mixing Cubage m3 10 10
Mixing Drum Slope Angle % 12 12
Mixing Drum Rotating Speed r/min 0-14 0-14
Feeding Speed M3/min ≥3.5 ≥3.5
Discharging Speed m3/min ≥1.5 ≥1.5
Slump mm 100~230 100~230
Surplus Rate % <0.5 <0.5
Water Tank Capacity L 260 260
