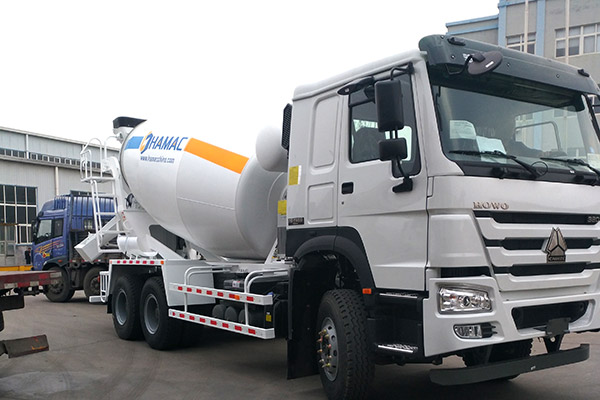

12cbm Concrete Mixing Truck

12cbm Concrete Mixing Truck video

INTRODUCTION

12cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.

Hot Sale in stock: HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck   - 6m3 Concrete Mixing Truck  - 8m3 Concrete Mixing Truck   - 10m3 Concrete Mixing Truck   - HMC1.5 Self-loading Concrete Mixer HMC4.0 Self-loading Concrete Mixer  Get quote or inquiry!

inquiry! Leave a Message!

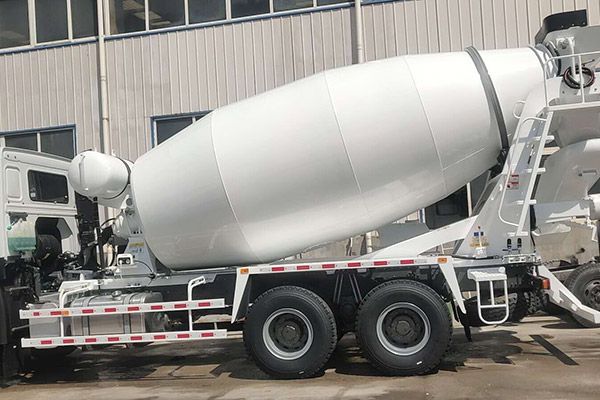

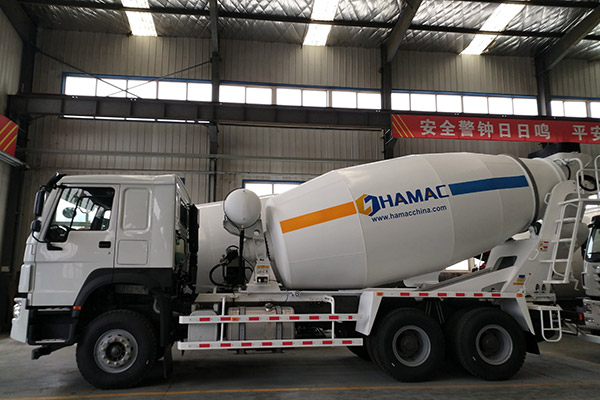

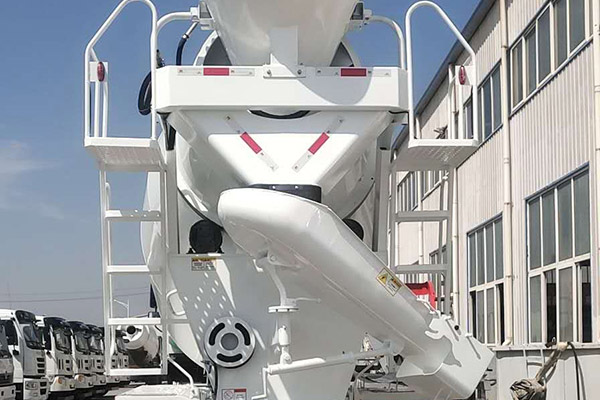

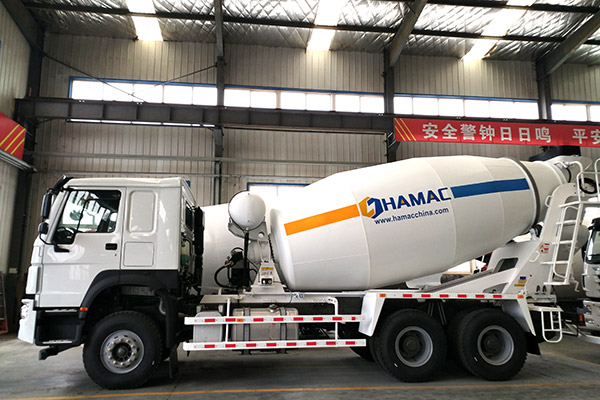

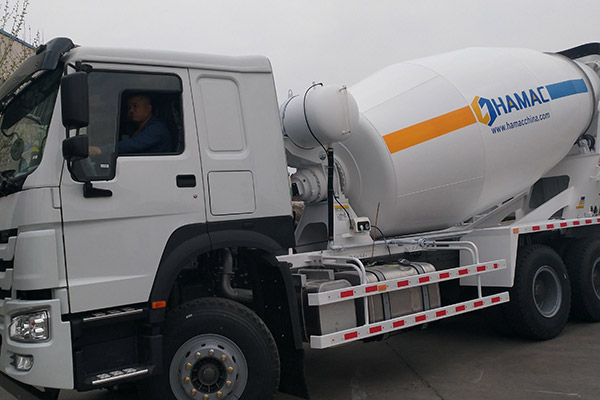

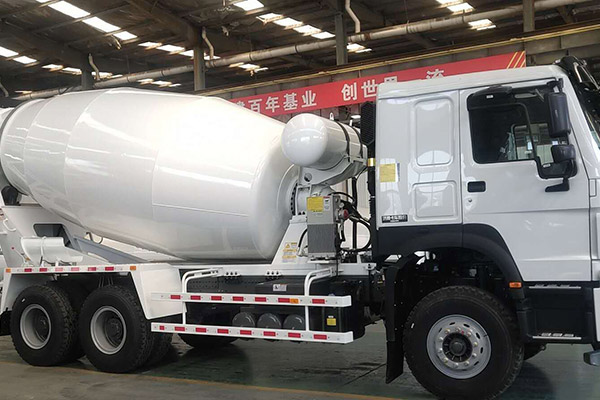

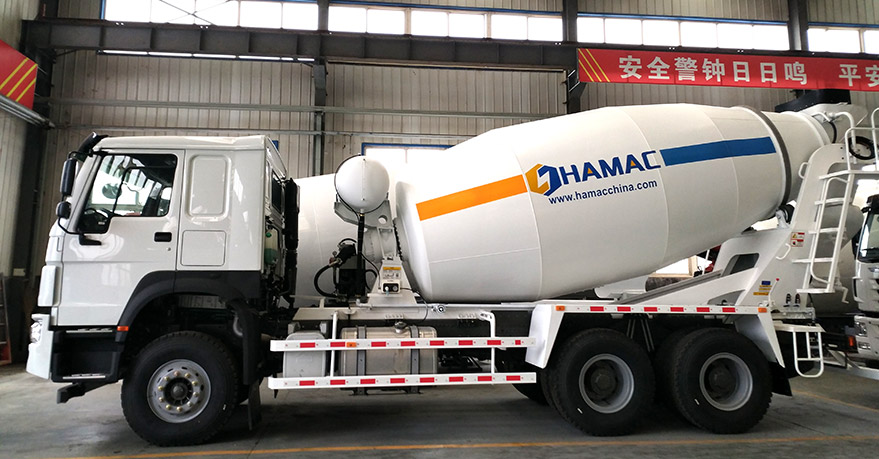

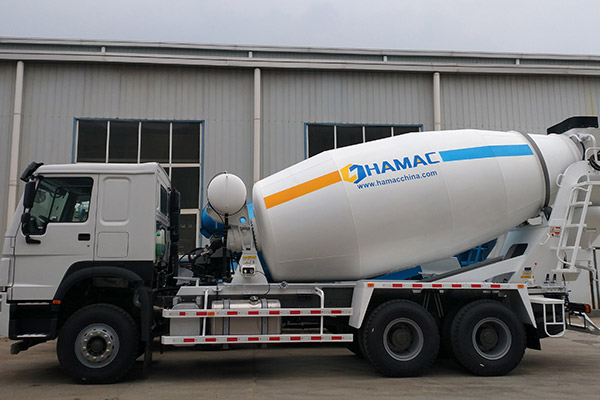

Detailed Photos

Specification

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

Overall parameter( Concrete Transit Mixing Truck 12m³)
Overall dimension 9800x2500x3980mm(Approx)
Kerb weight 14700kg(Approx)
Mixing Drum parameter
Mixing drum material High quality wear-resistance steel
Model:Q345
Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity 12m3
Drum overall dimension(with frame) 7100*2500*2730mm
Charging rate ≥3 m3/min
Top feed hopper dimension ≥650 mm
Discharging rate ≥2 m3/min
Residual rate ≤0.5%
Water supply Baric water supply system
Water tank capacity 450L
Radiator 18L
Reduction gear TOP T68 Reducer, Italy Brand
Hydraulic pump EATON 54, American Brand
Hydraulic motor EATON 54, American Brand
Accessory Tool box
Chassis parameter
Chassis Brand SINOTRUCK chassis
Wheelbase (mm) 3825+1350
Drive model Left hand drive
Quantity of axis 3
Engine SINOTRUCK  D10.34-40
Engine Power 340hp
Emission Standard EUR IV
Tire 12.00R20
Note: Our products are updated constantly, if there is any data discrepancy, please refer to the actual product.
