4cbm Concrete Truck Mixer

4cbm Concrete Truck Mixer video

INTRODUCTION

4cbm Concrete Truck Mixer consists of special device for automobile chassis and concrete mixing and transporting, always keeping the mixing drum rotating in the transport process and it is the special vehicle with integration of mixing and transport. We specialized in manufacturing the small concrete mixer truck working for the narrow working environments, including underground coal mine, reclamation construction, high-speed rail construction, township pavement construction, rural housing construction.

Hot Sale in stock: HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck   - 6m3 Concrete Mixing Truck  - 8m3 Concrete Mixing Truck   - 10m3 Concrete Mixing Truck   - HMC1.5 Self-loading Concrete Mixer HMC4.0 Self-loading Concrete Mixer  Get quote or inquiry!

inquiry! Leave a Message!

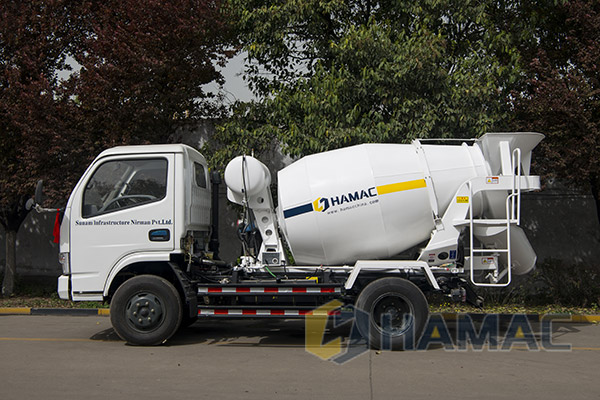

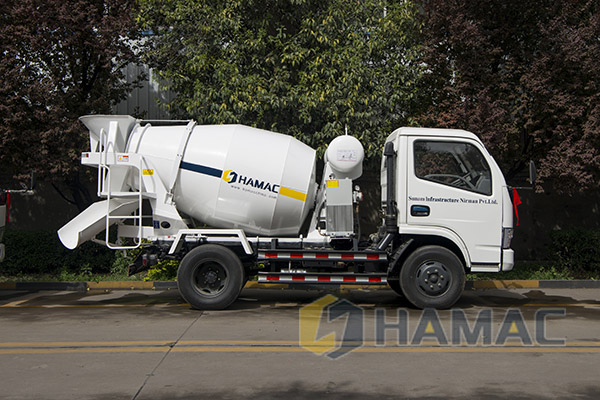

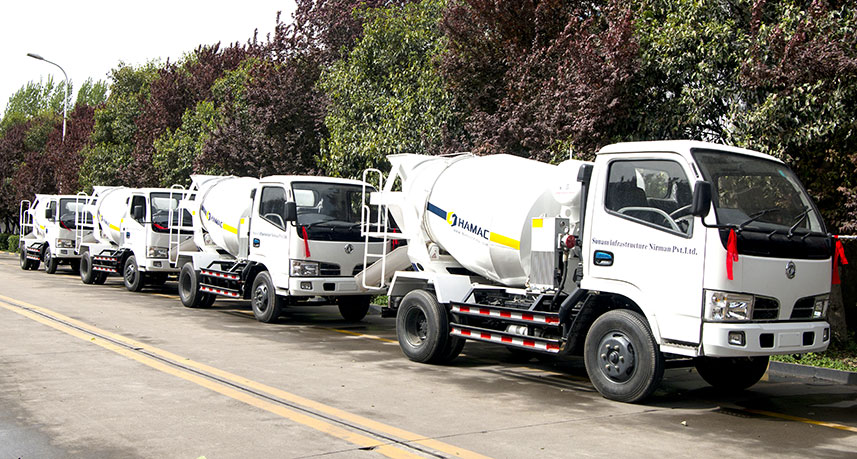

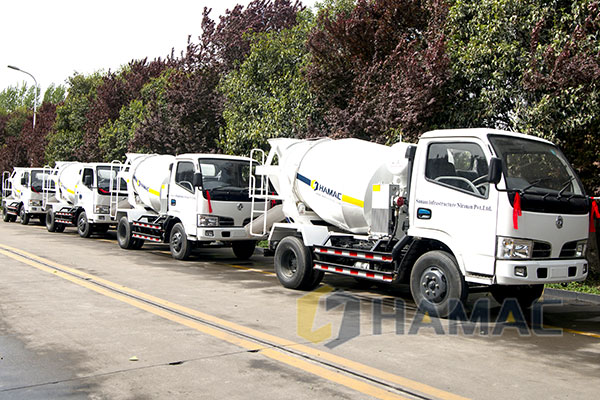

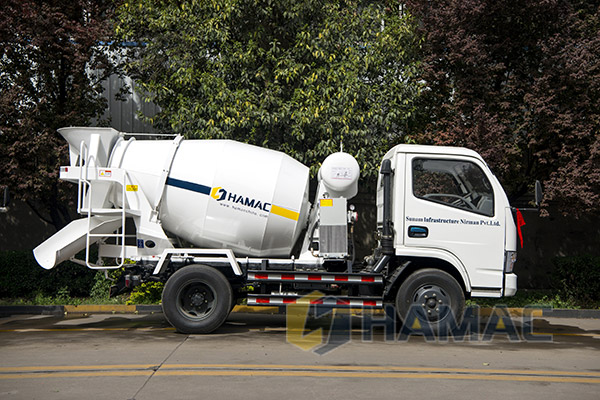

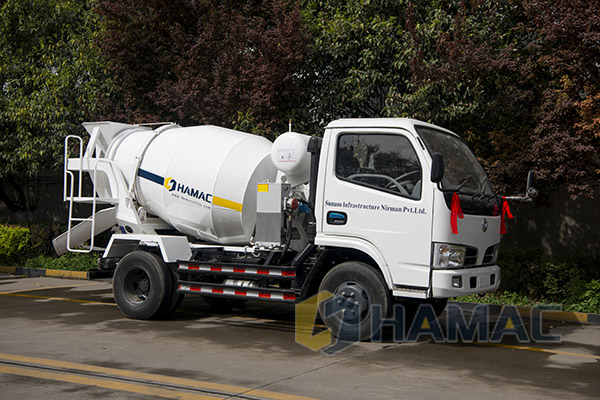

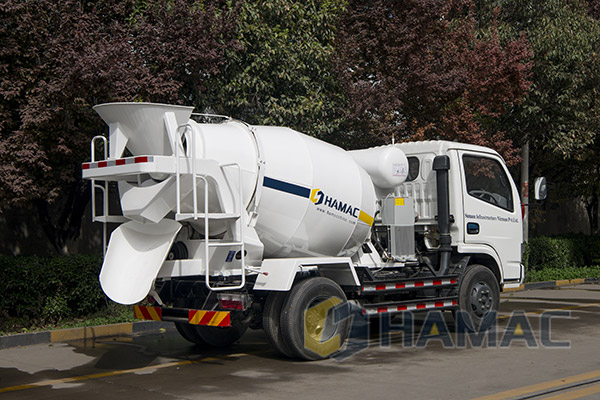

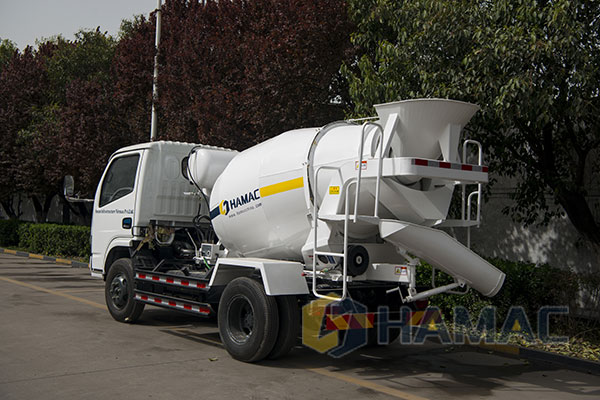

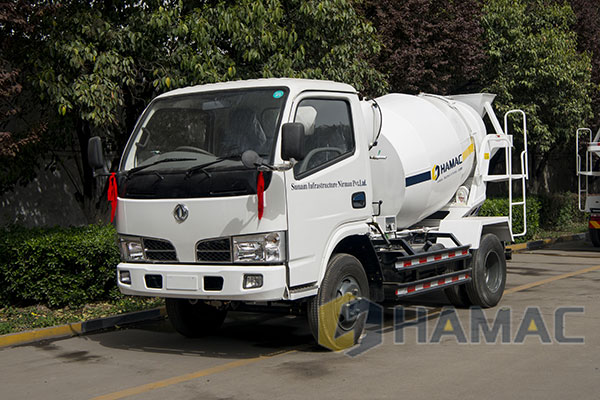

Detailed Photos

Specification

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

4m3 CONCRETE MIXER TRUCK STANDARD PARAMETER
Name 4m3 CONCRETE MIXER TRUCK  Model of engine YC4D130-41  turbocharging intercooling
Chassis model FOTON  BJ1143VJPFA-1 Engine type Forced circulation cooled
Total weight (kg) 13570 Engine displacement (L) 4200
Dimension L*W*H(mm) 6460*2255*3300 Engine power (kW) 96
Wheel base(mm) 3400 Max. standard engine speed(r/min) 3200
Front overhang(mm) 1230 Barrel geometric volume (m³) 4.5
Rear overhang(mm) 1830 Max. mixing volume (m³) 4
Max. gradeability(degree) 25 Feed rate (m³) ≥0.5
Max. speed(km/h) ≤83 Discharge rate (m³) ≥0.8
Turning diameter (m) ≤15 Max. rotate speed (r/min) 6-15
clutch double dry type clutch Barrel slope (°) 16
Transmission type shaft type Diameter of mixing barrel (mm) Φ1800
Drive mode rear wheel drive Gear box Ky67-3-c
Steering mode Hydraulic assisted Hydraulic pump 63 gear pump
Service brake Air disconnected brake Hydraulic motor gerotor motor
Parking brake Air rear brake Water tank volume (L) 62
Tyre 8.25-20 Water supply way Air pressure
