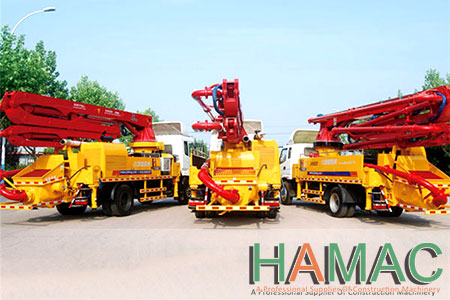

HMC5025 Truck Concrete Pump Boom

Introducción

25 small concrete pump truck is the refined product among the middle and short arm pump truck, after HBT trailer concrete pump, HBC truck-mounted concrete pump, HGY hydraulic concrete placing boom, and it is the high efficient concrete conveying equipment integrating driving, pumping, placing.The boom covers high reliability, economy, safety, durability, owning reasonable matching of Chassis, power, electric control and hydraulic pump system.Besides, it has flexible telescopic boom, less space occupation of the leg, convenient moving vehicle, flexible and security.
inquiry! Leave a Message!

Clients' Working Site

Advantage

With the special chassis for the development of rural market and the 2.3 meters width, it can easily adjust to and pass through the narrow and sludge rural roads. Using flexible four arm design, fabric ranges 20% higher than three-arm. At the same time it also applies the unilateral support technology in order to easily perform in a narrow construction site.
● The construction is especially for the new rural middle-low levels.
● The manufacture of short arm frame designed for high-speed rail construction.
● The design of national IV emission standard for energy conservation, and environmental protection
● Hydraulic automatic reversing of pumping system is for simple maintenance.
● 18-35 meters arms can move up and down, in accordance with high-speed rail laws.
● X-legs is designed to lead more safe and stable operation.
● Extremely high performance price ratio and use reliability help the party make profits.

Specification

Chassis and power system: Using truck chassis of Chinese FAW, Beiqi Foton, Dongfeng, featuring strong carrying ability, good dynamic performance and low fuel consumption; you can choose the installation of power alone or the chassis power, the Separate power of independent research and development possesses the features of fuel economy, reduce energy consumption, easy maintenance.
Pumping hydraulic system : full hydraulic control of the hydraulic system , oil pressure transfers signal, making the operation become more simple and reliable, improving swing cylinder commutation speed and reducing the impact of change , meanwhile the speed of large cylinder change is instantly accelerated, the move can full the concrete cylinder, making the process of material continuity and evenly.

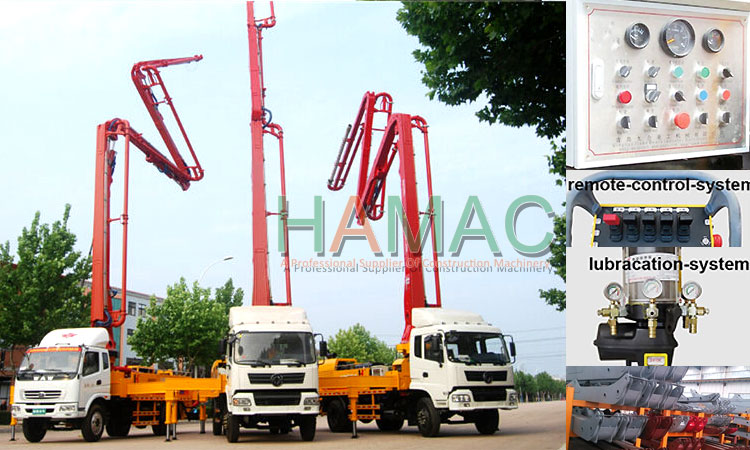

The boom and pumping hydraulic system: the arm uses the load-sensitive proportional control system, so as to control the speed of the boom freely and achieve excellent operating performance; it can achieve infinitely variable remote control but also achieve an emergency manual operation in case of emergency; legs and the oil boom switch directly to avoid the misuse and ensure the working security.
The boom: By the finite element analysis, dynamic analysis and experiment and on the basis of accurate data, materials adopt the high strength low alloy steel plate, and all materials and welds passed by 100% non-destructive testing so as to ensure the rational boom structure and high reliability.
Note: Preferring to choose the matching tops diesel engine: Yuchai, Cummins, Revo.
HMC5025 Truck Concrete Pump Boom
CHASSIS Chassis FAW/FOTON/DONGFENG
Emission standards National standard IV
Engine DACHAI or YUCHAI
Power and rated speed of engine 200p/2000rpm
Wheelbase 4700
Max driving speed 80km/h
Vehicle approach angle/departure angle 21°/11.5°
Tyre type 9.00R20 16 layers


BOOM SYSTEM

Max concrete placing height 24.2m
Max concrete placing radius 20.6m
Max concrete placing depth 10.5m
First arm length(MM) 6500
Second arm length(MM) 4590
Third arm length(MM) 45900
Fourth arm length(MM) 4900
Arm foldable angle 90/180/360/540
Boom control system Load sensing proportion control system
Arm folding form M type
Turret rotation angle 90°
Front support leg span 5350
Back support leg span 3300
The leg longitudinal distance (MM) 6100
Leg opening type X-H
Trail length of hose 3000mm
Diameter of pipeline (MM) 125
Electrical control system Control Power Supply 24v
Control model PWM
Working voltage 24
Electric parts Omron
Wireless remote control Germany HBC or homebred
Hydraulic transmission system Hydraulic system type Open circuit
Rated working pressure 31.5Mpa
Main oil pump Rexroth /Kawasaki
Main oil pump model A11VO190,K3V140 K3V180
Main oil pump capacity 190,140,180
Electro-hydraulic directional control valve Imported or Domestic
Suction and back oil filter Liming(domestic)
Jib multi-way valve HAWE or domestic
Jib balance valve Italy
Jib oil pump Domestic
Support leg multi-way valve Italy or domestic
Safety valve Imported or domestic
Oil cylinder hydraulic seals Parker
Hydraulic hopper capacity 450
Hydraulic oil cooling Air-cooling
Main oil cylinder XIELI(domestic)
Transfer case Germany STIEBEL or domestic
Slewing reducer Domestic brand
Hose connection Eaton
Cleaning system Air pressure or plunger pump
DIMENSIONS WEIGHT Total length of vehicle(MM) 9445/9910
Total width of vehicle(MM) 2300
Total height of vehicle(MM) 3550
Total weight of vehicle(T) 15.8
PUMPING SYSTEM The type of distribution valve S valve
Concrete piston Domestic
Max. outlet pressure(H/L) 10/5
Concrete cylinder Dia x Stroke 200/1200-1450
Max. feeding height(MM) 1450
Hopper capacity(M3) 0.65
Concrete slump 160-220
Allowable max diameter of aggregate(MM) Allowable max diameter of aggregate(MM)
