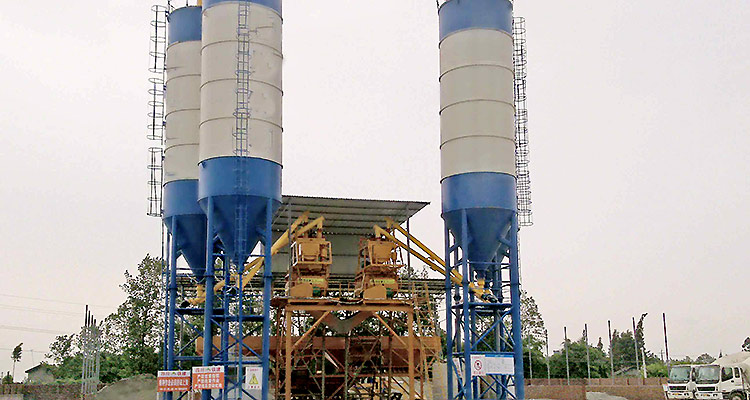

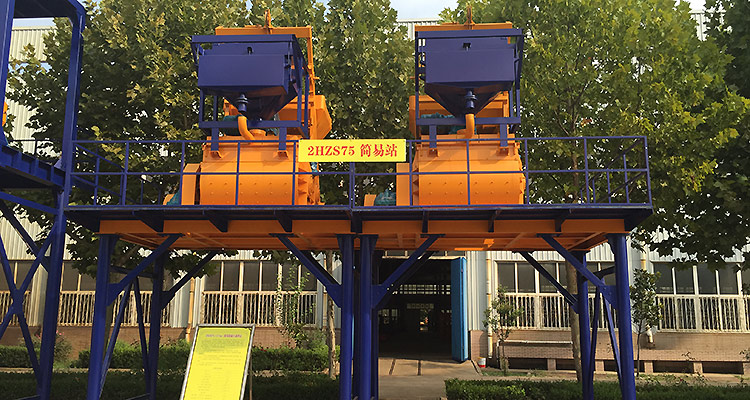

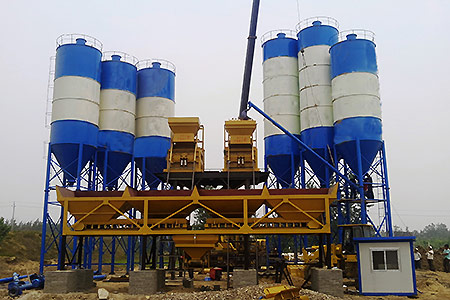

Clients' Working Site


Advantage
1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS750 twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
Specification
Model | 2HZS75 |
Theoretic productive | 2×(30-40)m3/h |
Concrete mixer | 2×JS750 |
Maximum aggregate size | 80mm |
volume of discharge product | 2×0.75m3 |
aggregate transporting way | Bucket conveyor |
aggregate weighing | 2250Kg ±2% |
cement weighing | 450Kg ±1% |
Water weighing | 300Kg ±1% |
Loading height | 2.48m |
total power | 110Kw |
total weight | 16.99t(the discharge height 2.7m) |
23.76t(the discharge height 3.8m) | |
Overall dimension (working condition: LXWXH) | 8045mm×8100mm×6450mm(the discharge height 2.7m) |
9970mm×8510mm×10100mm(the discharge height 3.8m) | |
discharging height | 2.7m/3.8m |
silo (optional) | As client request, the quantity and volume is optional. |
screw conveyor (optional) | One φ219 screw conveyor for each silo |
